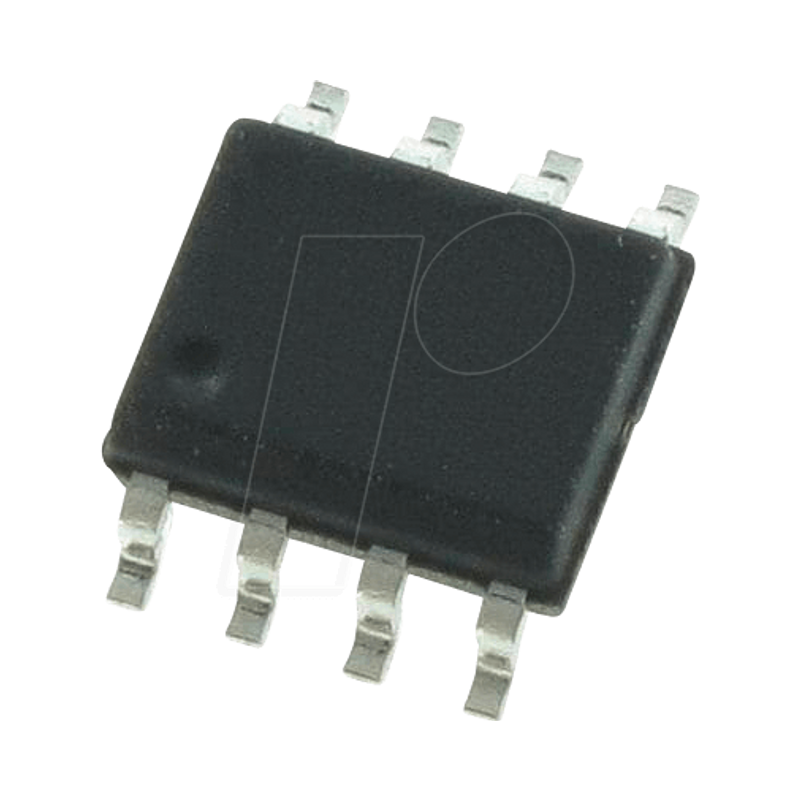

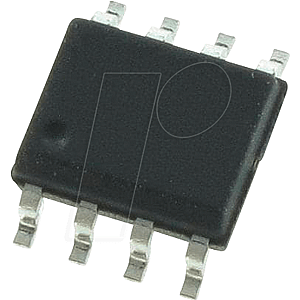

Differential transceiver, RS485/RS422, 35 Mbaud, SO-8

Differential Bus Transceiver

Description
The SN65ALS176 and SN75ALS176 series combine
a 3-stage differential line driver and a line receiver.
line receiver, both of which operate from a single 5
V power supply. The driver and receiver feature active-high
and active-low enables, which can be externally
can be externally interconnected to act as
directional control. The differential outputs of the driver and
the differential inputs of the receiver are internally connected
to form a differential input/output bus connection that is
designed to have a minimum load on the bus
when the driver is disabled or VCC = 0. This connection
has a large positive and negative common
common mode voltage ranges, making the device suitable for partyline
applications.

Important features
