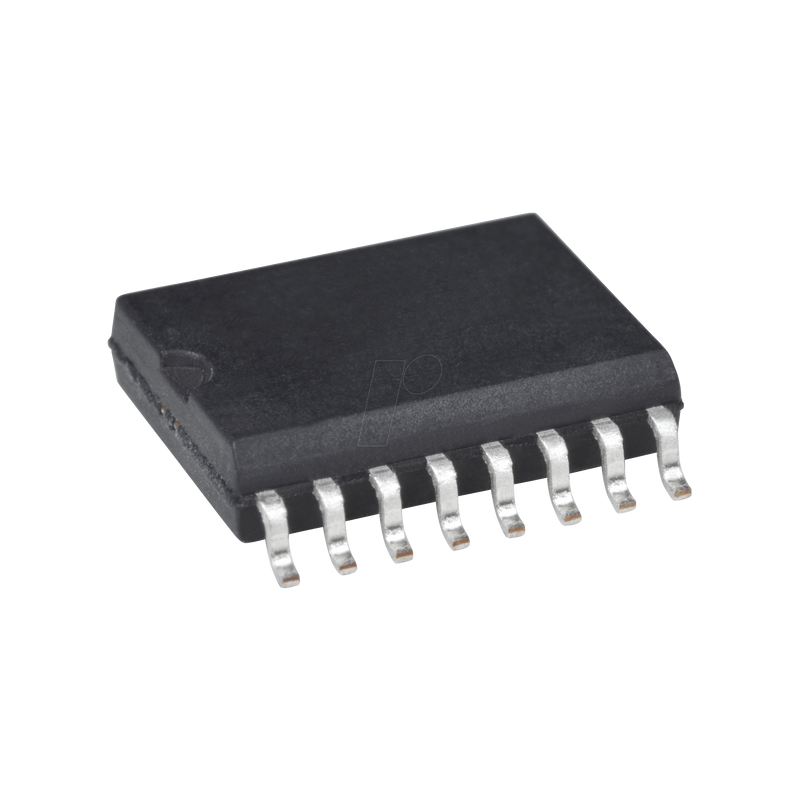

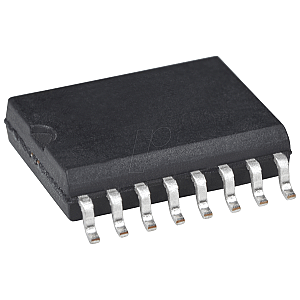

Digital isolator, 1-channel, SO-16

ADuM 3160
The ADuM31601 is a USB port isolator based on Analogue Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics and is easily integrated with low and full speed USB-compatible peripheral devices.

- USB 2.0 cable compatible
- Data rate: 1.5 Mbps and 12 Mbps
- Bidirectional communication
- 4.5 V to 5.5 V VBUS operation
- Upstream short-circuit protection
- Class 3A contact ESD performance per ANSI/ESD STM5.1-2007
- High temperature operation: 105°C
- High common mode transient immunity:> 25 kV/μs
- Housing: WSOIC-16

APPLICATIONS
- USB peripheral isolation
- Isolated USB hubs
