7/8-Bit Single, +36V (±18V) Digital Potentiometer with SPI Serial Interface and Volatile Memory
Description:
MCP41HV51 is a single-channel, high voltage digital potentiometer (Digipot) family that supports 10V ~36V or +/-5V to +/-18V power rails. It features 8-bit resolution with SPI interface. This family is available in TSSOP-14 and QFN-20 (5x5) packages and has 5kO, 10 kO, 50 kO, and 100 kO end-to-end resistance(RAB) options . All parts are guaranteed to operate over -40°C to +125°C extended temperature range.
Microchip's MCP41HVX1 and MCP45HVX1 digital potentiometer (Digipot) families offer the widest operating voltage range that is currently available on the market.

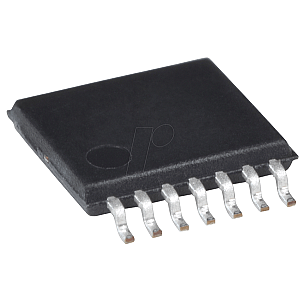

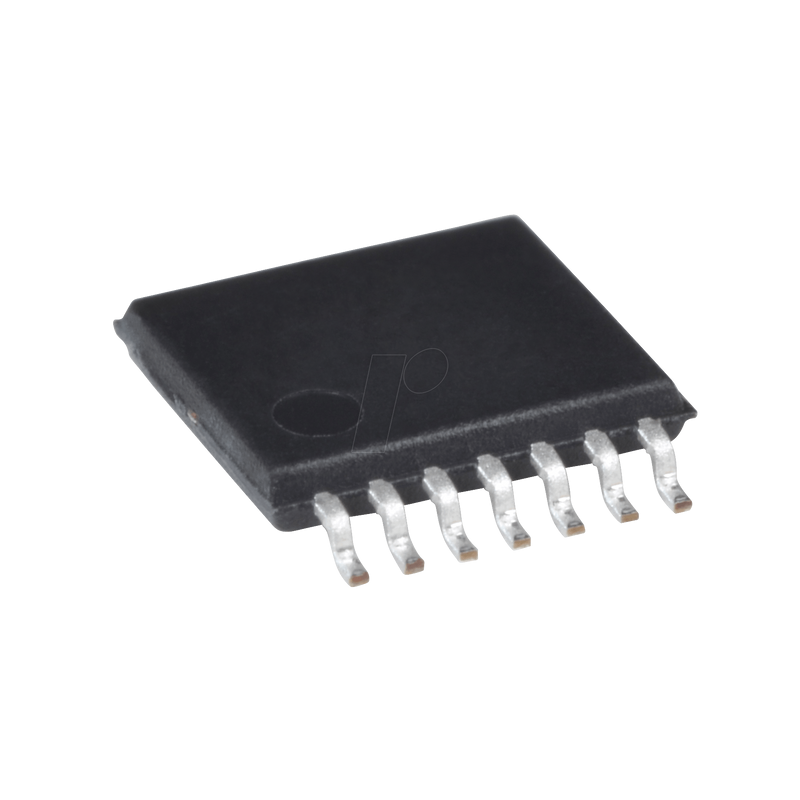

Digital potentiometer , 1-channel, 255 steps, SPI , 50 kOhm, TSS
€2.18MCP 41HV51-50K
Technical information
| General | |
|---|---|
| Model | Potentiometer |
| Type | Digitalpotentiometer |
| Design | 1-fold |
| Mounting form | TSSOP-14 |
| Resolution | 8 Bit |
| Memory | RAM |
| Electrical values | |
| Resistor | 50 kOhm |
| Supply voltage | 10 ... 36 / 1.8 ... 5.5 VDC |
| Frequency | 10 MHz |
| Implementation | |
| Sample rate | 127 steps |
| Other | |
| Temperature range | -40 ... +125 |
| Interfaces | |
| Interface | SPI |
| Measuring range | |
| Resistor | 50 k Ohm |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | MCP41HV51-503E/ST |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001437540 |
| HS-Code | 85423990 |
