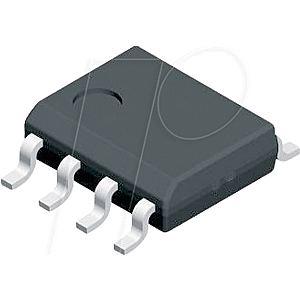

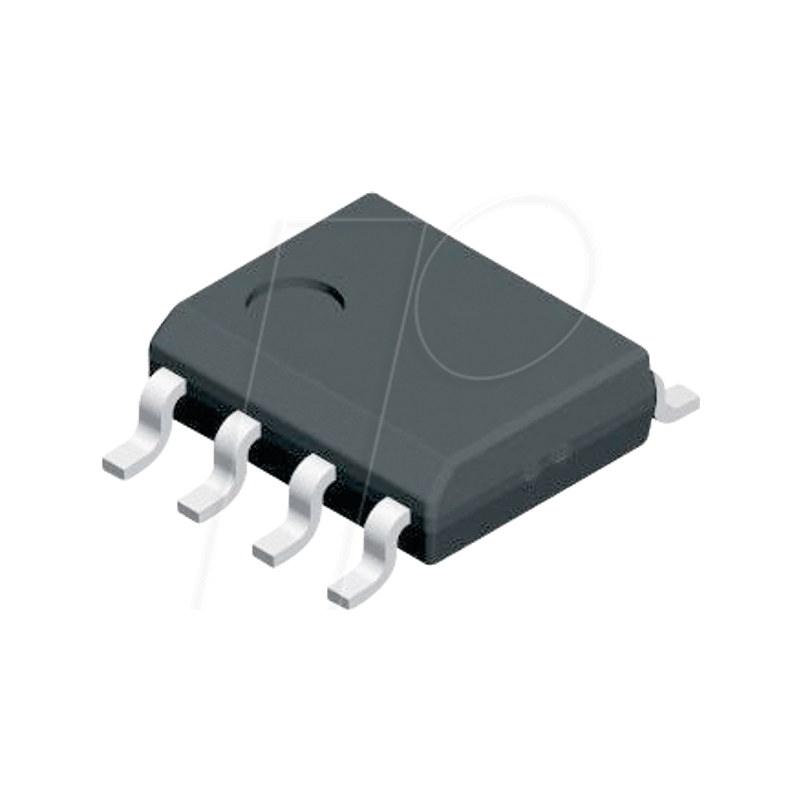

Digital potentiometer, 10 kOhm, 2-wire, RAM, SOIC-8

Main features
- Potentiometer or rheostat configuration options
- 7-bit resistor networks resolution
- 127 resistors (128 steps)
- Zero-scale to full-scale wiper operation
- RAB resistors: 5 kOhm, 10 kOhm, 50 kOhm or 100 kOhm
- Low wiper resistance: 100 ohms (typical)
- Low temperature coefficient:
- Absolute (rheostat): 50 ppm typical
(0°C to 70°C)
- Ratiometric (potentiometer): 10 ppm typical
- Simple I2C protocol with read and write commands
- Brown-out reset protection (1.5 V typical)
- Wiper default setting at switch-on (mid-scale)
- Power-saving operation:
- 2.5 A static current (typical)
- Wide operating voltage range:
- 2.7 V to 5.5 V - device characteristics
Specified
- 1.8 V to 5.5 V - device operation
