The AD5241/AD52421 offer a single/dual channel with 256 positions.
They fulfil the same electronic setting function as a potentiometer, trimmer or variable resistor. Each VR offers a fully
programmable resistance value between the A terminal and the wiper or the B terminal and the wiper. For the AD5242, the fixed
A-to-B connection resistance of 10 kOhm, 100 kOhm or 1 MOhm is a matching tolerance of 1% from channel to channel. The nominal temperature
coefficient of both components is 30 ppm/°C.
The wiper position programming is set to the middle scale by default when the system is switched on. When the system is powered on, the VR wiper position is programmed via an
I2C-compatible, 2-wire serial data interface. Both components have two additional programmable logic outputs that allow the user
to control digital loads, logic gates, LED drivers and analogue switches in their system.
In stock
SKU AD5242BRZ10

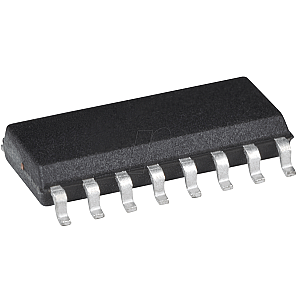

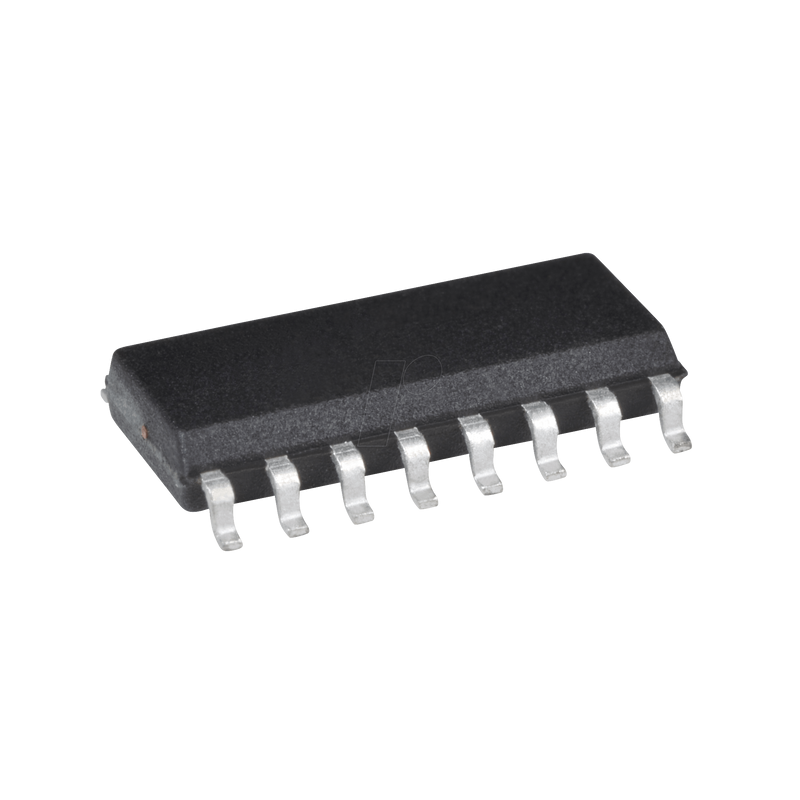

Digital potentiometer, 10 kOhm, I2C, RAM, SOIC-16
MPN AD5242BRZ10
Manufacturer ANALOG DEVICES
€9.78
incl. 19% VAT · €8.22 excl. VAT
Package
SOIC-16
Specifications
General
Model
Self contained shutdown
Type
Digitalpotentiometer
Design
2-fach
Mounting form
SOIC-16
Resolution
8
Memory
RAM
Electrical values
Resistor
10 kOhm
Supply Voltage Min.
2.7 V
Supply Voltage Max.
5.5 V
Implementation
Sample rate
256
Other
Temperature range
-40..+105
Interfaces
Interface
I2C
Manufacturer specifications
Manufacturer
ANALOG DEVICES
Manufacturer ID
AD5242BRZ10
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003986060
HS-Code
85423990
