Key features
Very low current consumption: 40 µA max.
Up/down counter control

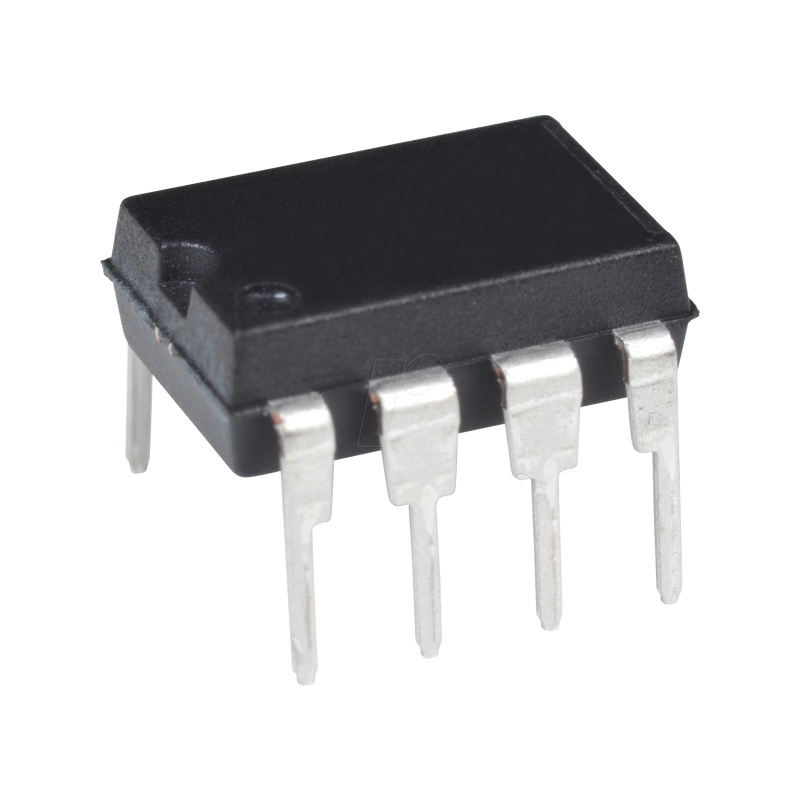

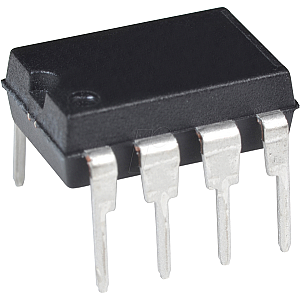

Digital potentiometer, 128 positions, 10kOhm, Dip-8
€17.02AD5220BNZ10
Technical information
| General | |
|---|---|
| Model | Digital potentiometer |
| Type | Digitalpotentiometer |
| Design | 1-fold |
| Mounting form | DIP-8 |
| Electrical values | |
| Resistor | 10 kOhm |
| Supply voltage | 2.7 ... 5.5 VDC |
| Implementation | |
| Sample rate | 128 steps |
| Other | |
| Temperature range | -40 ... +85 |
| Manufacturer specifications | |
| Manufacturer | ANALOG DEVICES |
| Manufacturer ID | AD5220BNZ10 |
| Weight | 0.01 kg |
| RoHS | conform |
| EAN/GTIN | 9900003535084 |
| HS-Code | 85423990 |
