The MCP446X devices are non-volatile,
8-bit (257 wiper steps) digital potentiometer with EEPROM and an I2C-compatible interface.
The MCP446X family is available with end-to-end resistance values of 5KO, 10KO, 50kO, 50kO and 100KO.
These devices offer WiperLock™ technology that allows the user unlimited reprogramming and locking of the wiper setting.
It is useful for instruments that require factory trimming or recalibration.
The MCP446X offers a variety of configurations that simplify design while minimizing cost, package size and pin count.
In stock
SKU MCP 4461-103E/ST

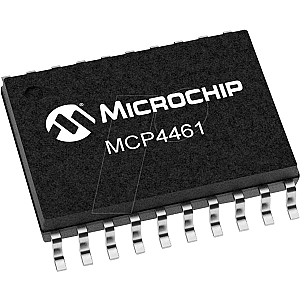

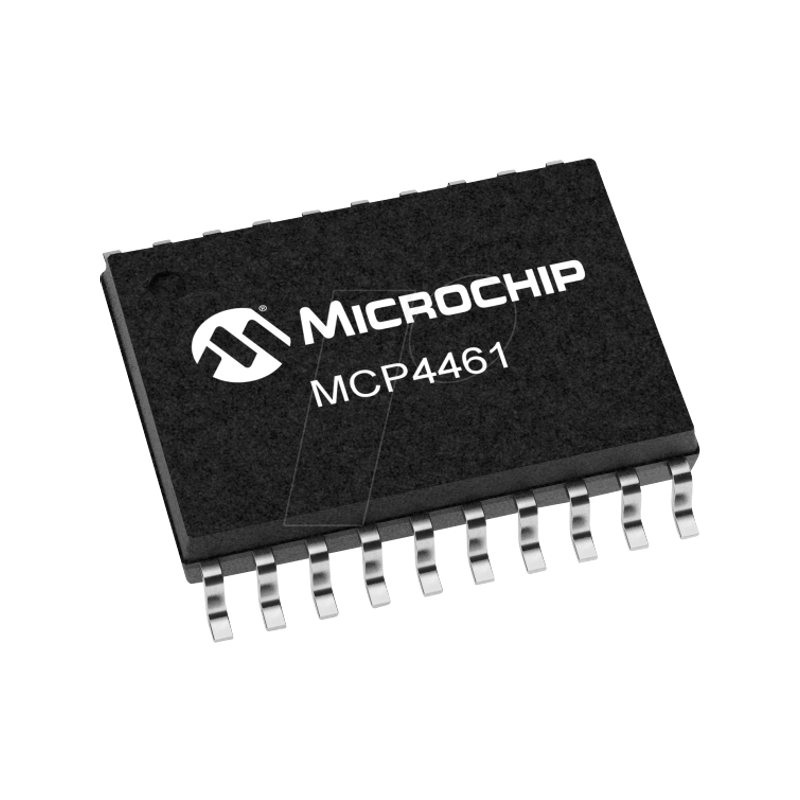

Digital potentiometer, 8-bit 4-channel, 256 steps, 10 kOhm, TSSO
MPN MCP4461-103E/ST
Manufacturer MICROCHIP
€3.67
incl. 19% VAT · €3.08 excl. VAT
Package
TSSOP-20
Specifications
General
Model
Potentiometer
Type
Digitalpotentiometer
Design
4-fold
Mounting form
TSSOP-20
Resolution
8 Bit
Memory
Nonvolatile
Electrical values
Resistor
10 kOhm
Supply voltage
+2.7 +5.5 VDC
Temperature coefficient
150
Frequency
0.1 MHz
Implementation
Sample rate
256 steps
Other
Temperature range
-40 ... +125
Interfaces
Interface
I²C
Measuring range
Resistor
10 k Ohm
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP4461-103E/ST
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001097560
HS-Code
85423990
