The Intersil ICL7106 and ICL7107 are high performance, low power, 3 1/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive, the ICL7107 will directly drive an instrument size light emitting diode (LED) display.

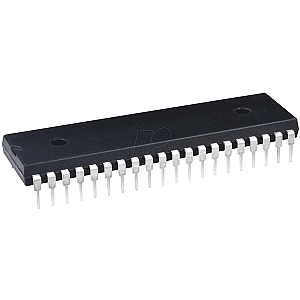

Display driver, 3½ digits, A/D converter, DIP-40
€9.18ICL 7106 CPLZ
Technical information
| General | |
|---|---|
| Model | Display driver |
| Type | LCD |
| Design | 3½ digits |
| Mounting form | DIP-40 |
| Technology | A/D converter |
| Electrical values | |
| Supply voltage | 9 VDC |
| Input voltage | 0 - 0.2 VDC |
| Output voltage | 5.5 V DC |
| Frequency | 0.048 MHz |
| Other | |
| Temperature range | 0 .. +70 |
| Manufacturer specifications | |
| Manufacturer | RENESAS |
| Manufacturer ID | ICL7106CPLZ |
| Weight | 0.006 kg |
| RoHS | conform |
| EAN/GTIN | 9900001888793 |
| HS-Code | 85423990 |
