The L6208 is a fully integrated DMOS motor driver with overcurrent protection, implemented in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The chip offers all the functions necessary to drive a bipolar two-phase stepper motor:
• Supply voltage of 8-52 V.
• 5.6 A peak current
• RDSon 0.3 ohms at 25°C.
• Up to 100 kHz switching frequency
• Non-dissipative overcurrent protection
• Choose between fast/slow decay modes
• With fast decay time quasi synchronous rectification
• Two independent offcycle controllers
• Stepper motor decoding logic (full and half step)
• Cross-line protection
• Thermal overload protection
• Undervoltage protection
• Integrated high-speed freewheeling diodes
Typical application
• Bipolar stepper motors
In stock
SKU L6208PD

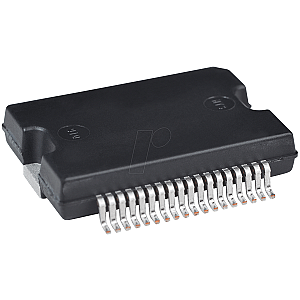

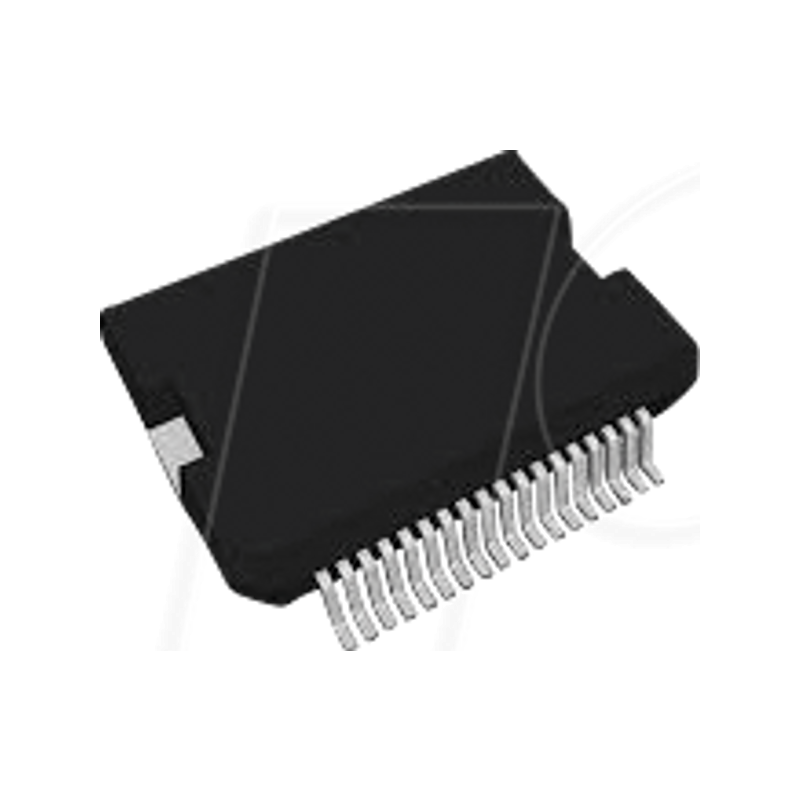

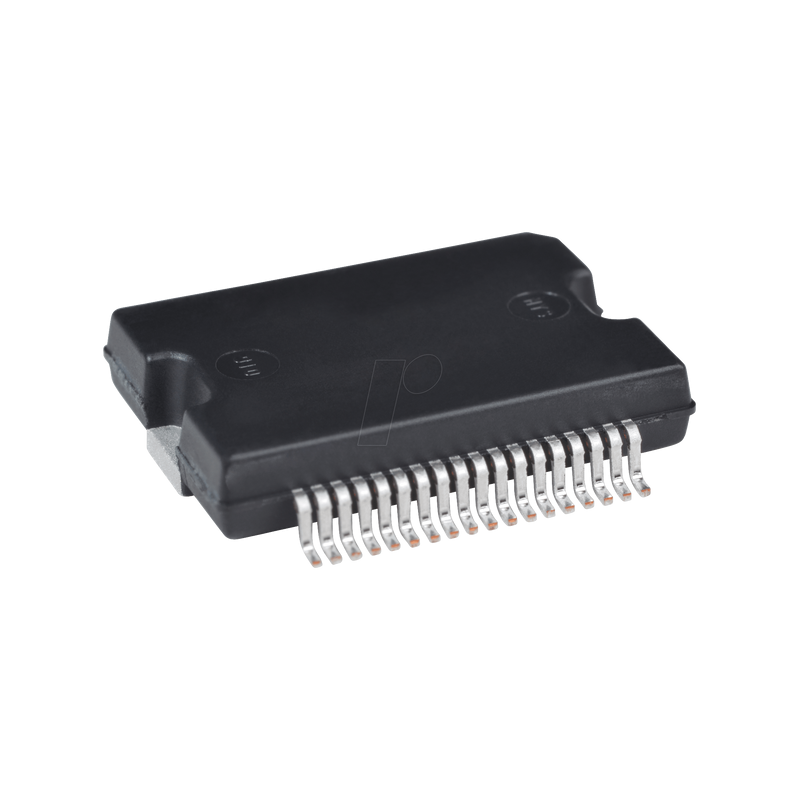

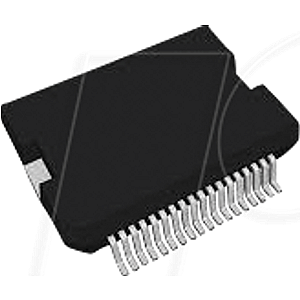

DMOS driver for bipolar stepper motor, 8-52 V, 2.8 A, PowerSO-36
MPN L6208PD
Manufacturer STMICROELECTRONICS
€12.10
incl. 19% VAT · €10.17 excl. VAT
Package
PowerSO-36
Specifications
General
Model
Driver
Type
Bridge driver
Design
BCD Technology
Mounting form
PowerSO-36
Electrical values
Supply voltage
8 .. 52 VDC
Input voltage
-0.3 ... 7 VDC
Output voltage
60 V DC
Output Current
2.8 A
Switching frequency
100 kHz
Other
Temperature range
-40 .. +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6208PD
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900002696755
HS-Code
85423990
Safety information
Responsible person for the EU
Economic operator established in the EU, who ensures that the product complies with the required regulations:
STMicroelectronics GmbH
Bahnhofstraße 18
85609 Aschheim, DE
[email protected]
https://www.st.com
