Description:
The L6203 is a full bridge driver for motor control applications in multipower BCD technology, combining isolated DMOS power transistors with CMOS and bipolar circuits on the same chip.
By using mixed technology, it has been possible to optimize the logic circuit and the power stage to achieve the best possible performance. The DMOS output transistors can be operated from the mains.
Voltages up to 42V and efficient at high switching speeds.
All logic inputs are TTL, CMOS and mC compatible.
Each channel (half bridge) of the device is controlled by a separate logic input, while a common enable controls both channels.
Features:
In stock
SKU L 6203

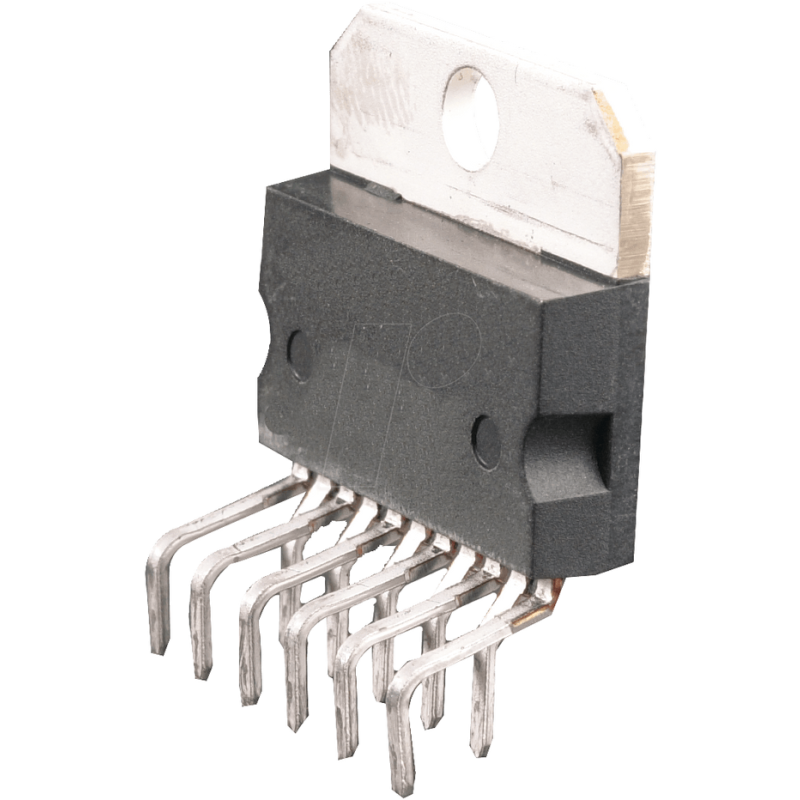

DMOS full bridge driver, 12 - 48V, 60V/4A, Multiwatt-11
MPN L6203
Manufacturer STMICROELECTRONICS
€11.63
incl. 19% VAT · €9.77 excl. VAT
Package
Multiwatt-11
Specifications
General
Model
Driver
Type
Bridge driver
Design
BCD Technology
Mounting form
Multiwatt-11
Electrical values
Supply voltage
12 .. 48 VDC
Input voltage
-0.3 ... 7 VDC
Output voltage
60 V DC
Output Current
4 A
Other
Temperature range
-40 .. +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6203
Weight
0.0055 kg
RoHS
conform
EAN/GTIN
9900000097622
HS-Code
85423990
