Description:
The L6201PS is a full-bridge driver for motor control applications in Multipower BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip.
The use of mixed technology has enabled optimisation of the logic circuit and power level to achieve the best possible performance. The DMOS output transistors can be operated from the mains.
Voltages up to 42 V and efficient at high switching speeds.
All logic inputs are compatible with TTL, CMOS and µC.
Each channel (half bridge) on the device is controlled by a separate logic input, while a common enable controls both channels.
Features:
In stock
SKU L 6201 PS TR

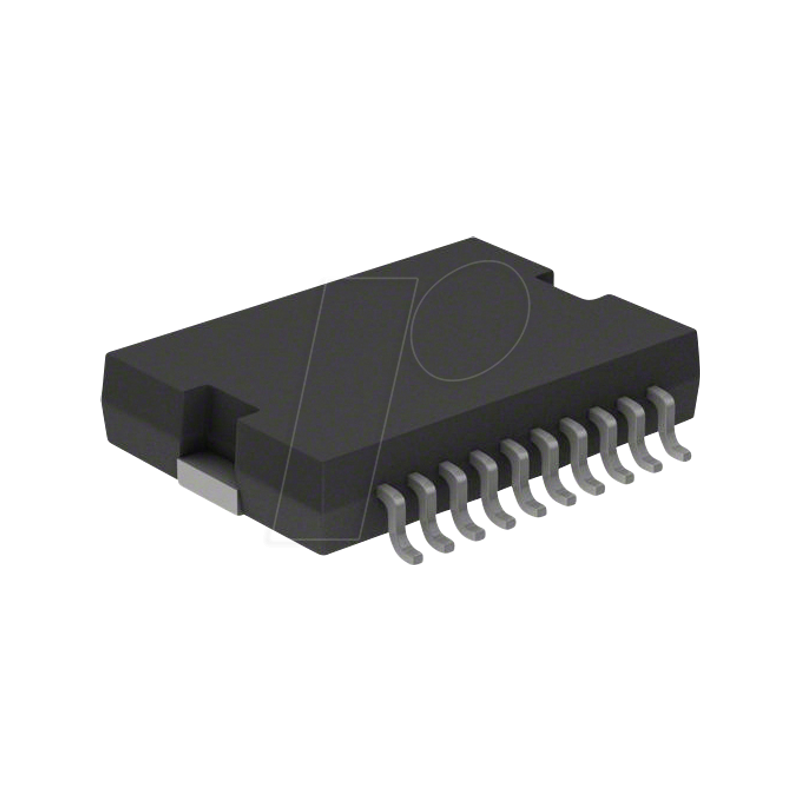

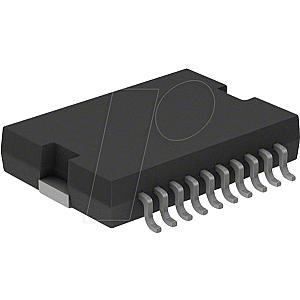

DMOS full-bridge driver, 12 - 48V, 60V/4A, PowerSO-20
MPN L6201PSTR
Manufacturer STMICROELECTRONICS
€8.54
incl. 19% VAT · €7.18 excl. VAT
Package
SO-20
Specifications
General
Model
Treiber
Type
Brückentreiber
Design
BCD Technology
Mounting form
SO-20
Electrical values
Supply voltage
12 .. 48 VDC
Input voltage
-0.3 ... 7 VDC
Output voltage
60 V DC
Output Current
4 A
Other
Temperature range
-40 .. +150
Packaging
Packaging
Reel
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6201PSTR
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900003844131
HS-Code
85423990
