The L6225 is a DMOS Dual Full Bridge designed for motor control applications and implemented in MultiPower BCD technology that combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. Available in the PowerDIP20 (16+2+2), PowerSO20 and SO20 (16+2+2) enclosures, the L6225 provides non-dissipative protection of the high-sided PowerMOSFETs and thermal shutdown.
In stock
SKU L6225D

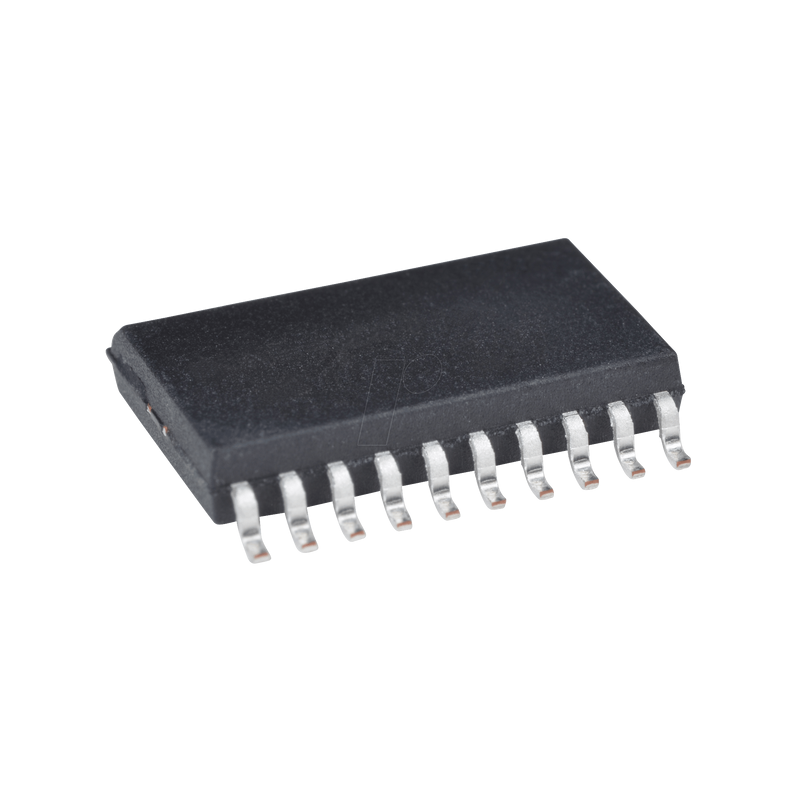

DMOS full-bridge driver, 8-52 V, 2.8 A, SO-20
MPN L6225DTR
Manufacturer STMICROELECTRONICS
€3.21
incl. 19% VAT · €2.70 excl. VAT
Package
SO-20
Specifications
General
Model
Driver
Type
Bridge driver
Design
BCD Technology
Mounting form
SO-20
Electrical values
Supply voltage
8 .. 52 VDC
Input voltage
-0.3 ... 7 VDC
Output voltage
60 V DC
Other
Temperature range
-40 .. +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6225DTR
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900002696274
HS-Code
85423990
