High-current switching regulators with up to 4 A output current.
- Input voltage: 9 - 46 V
- Output voltage: 5.1 - 40 V
• 0 - 100% duty cycle
• Accurate ±2% reference
• Switching frequency up to 200 kHz
• Up to 90% efficiency
• Soft start
• Reset output
• Externally programmable limitation

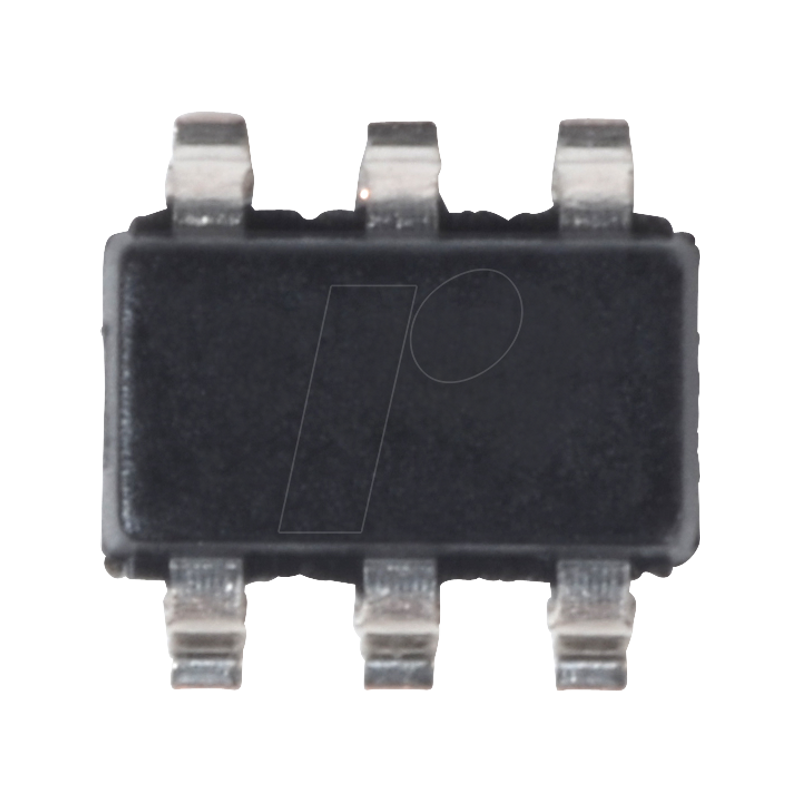

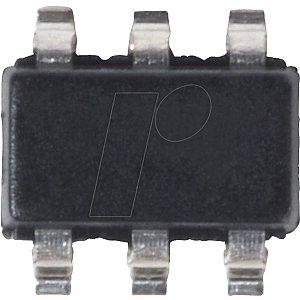

Downward switching regulator, 4,2 - 17 Vin, 0.8 - 10 Vout, 3 A,
€2.01MP1477HGTF-P
Technical information
| General | |
|---|---|
| Model | Schaltregler |
| Type | Abwärtswandler |
| Mounting form | SOT-563-6 |
| Topology | Buck |
| Outputs | 1 |
| Electrical values | |
| Input voltage | 4.2..17 VDC |
| Output voltage | 0.8..10 V DC |
| Output Current | 3 A |
| Switching frequency | 1200 kHz |
| Packaging | |
| Factory Pack Quantity | 500 pieces |
| Manufacturer specifications | |
| Manufacturer | MONOLITHIC POWER SYSTEMS |
| Manufacturer ID | MP1477HGTF-P |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900004074360 |
| HS-Code | 85423990 |
