The LM5106 is a high-voltage gate driver designed to drive both the high-side and low-side N-channel MOSFETs in a synchronous buck or half-bridge configuration. The floating high-side driver can work with rail voltages up to 100 V. The single control input is compatible with TTL signal levels and a single external resistor programs the switching transition dead-time through tightly matched turnon delay circuits.
In stock
SKU LM 5106 MM

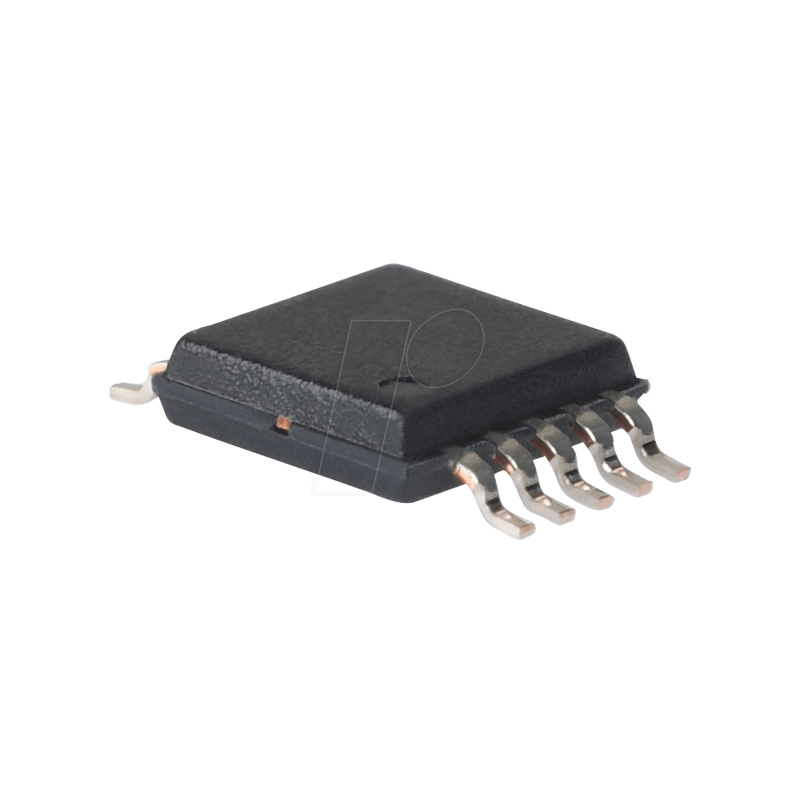

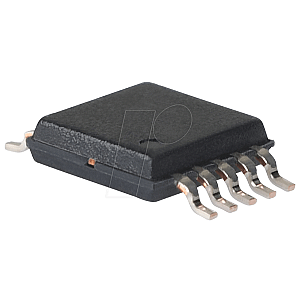

Driver IC, for stepper motors, VSSOP-10
MPN LM5106MM/NOPB
Manufacturer TEXAS INSTRUMENTS
€4.65
incl. 19% VAT · €3.91 excl. VAT
Package
VSSOP-10
Specifications
General
Model
Driver
Design
1-fold
Mounting form
VSSOP-10
Electrical values
Input voltage
8 - 14 VDC
Other
Temperature range
-40 .. +125
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
LM5106MM/NOPB
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001877698
HS-Code
85423990
