Microchip EEPROM, serial, 2.5 V
I²C-Bus
Housing: SO-8
8 x 256 x 8

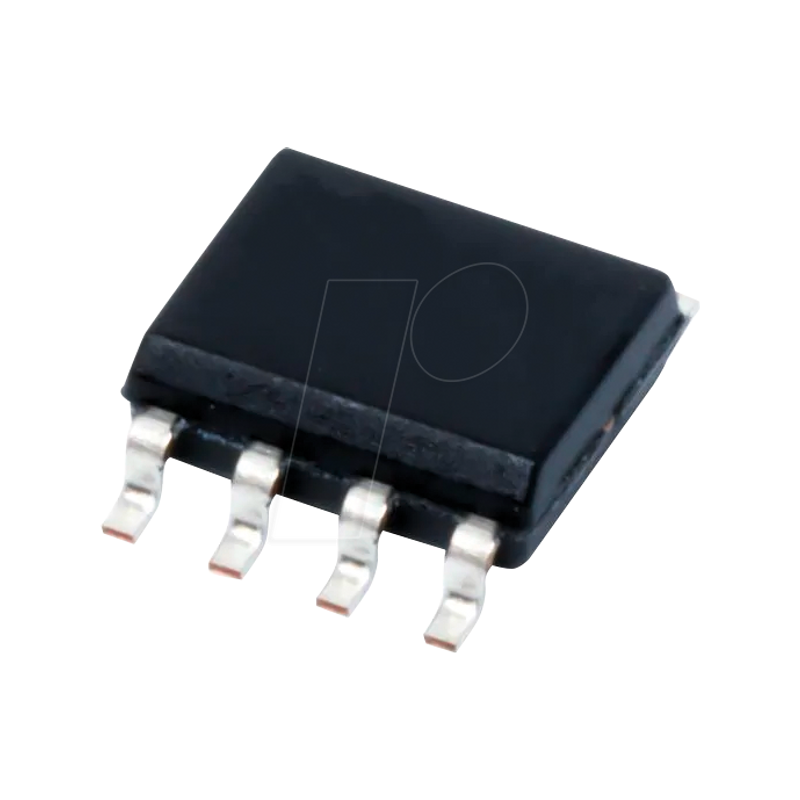

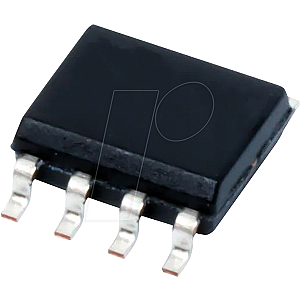

EEPROM, 16 Kb (2 K x 8), 2.5 ... 5.5 V, SO-8
€0.4324LC16B-I/SN
Technical information
| General | |
|---|---|
| Model | EEPROM |
| Type | Serial |
| Memory | 16 kb (2048 x 8) |
| Mounting form | SO-8 |
| Electrical values | |
| Supply voltage | 2.5 ... 5.5 VDC |
| Frequency | 0.4 MHz |
| Other | |
| Temperature range | -40 ... +85 |
| Specials | |
| Write protection | Yes |
| Energy efficiency | |
| Durability | 1.000.000 E/W Cycles h |
| Implementation | |
| Page Size | 16 Bytes |
| Cascade | - |
| Write Cycle | 5 ms |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | 24LC16B-I/SN |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900000400767 |
| HS-Code | 85423275 |
