2 kbit EEPROM with a pre-programmed globally unique IEEE EUI-64- MAC address. Organised in two blocks of 128x 8-bit with a serial 2-wire interface. Low-voltage design allows operation up to 1.7 V with maximum standby and active current of only 1 µA and 1 mA.
- Pre-programmed globally unique 64-bit node address
- Compatible with EUI-64™
- Single supply to 1.7 V
- Low-power CMOS-technology - 1 mA current, typical - 1 µA quiescent current (max.)
- 2-wire interface, I²C™ compatible
- Schmitt trigger inputs for noise reduction
- Output slope control
- 100-kHz and 400-kHz clock compatibility
- Self-timed erase/write cycles
- Page write buffer: 8-byte/page
- ESD protection: > 4000 V
- More than 1 million delete/writing cycles
- Information storage: >200
In stock
SKU 25AA02E64-I/SN

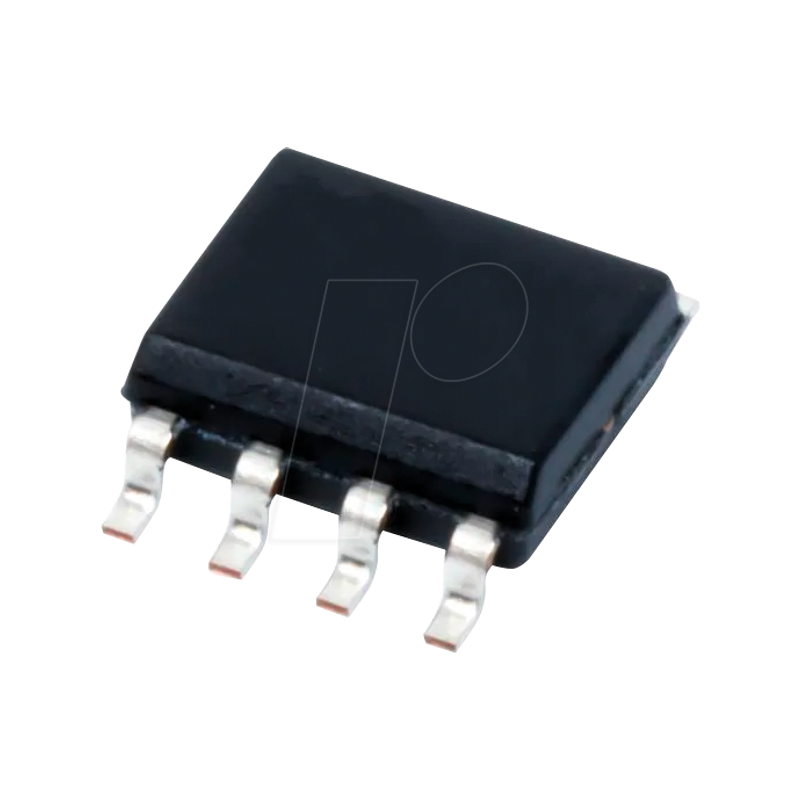

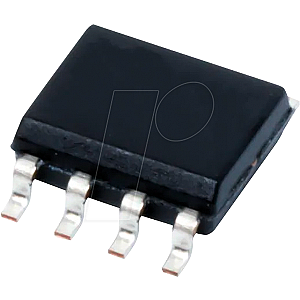

EEPROM, 2 Kb (256 x 8), 1.8 ... 5.5 V, SO-8
MPN 25AA02E64-I/SN
Manufacturer MICROCHIP
€1.07
incl. 19% VAT · €0.90 excl. VAT
Package
SO-8
Specifications
General
Model
EEPROM
Type
Serial
Design
EUI
Memory
2 kb (256 x 8)
Mounting form
SO-8
Electrical values
Supply voltage
1.8 ... 5.5 VDC
Frequency
10 MHz
Other
Temperature range
-40 ... +85
Specials
Write protection
Yes
Energy efficiency
Durability
1.000.000 E/W Cycles h
Implementation
Page Size
16 Bytes
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
25AA02E64-I/SN
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001449383
HS-Code
85423275
