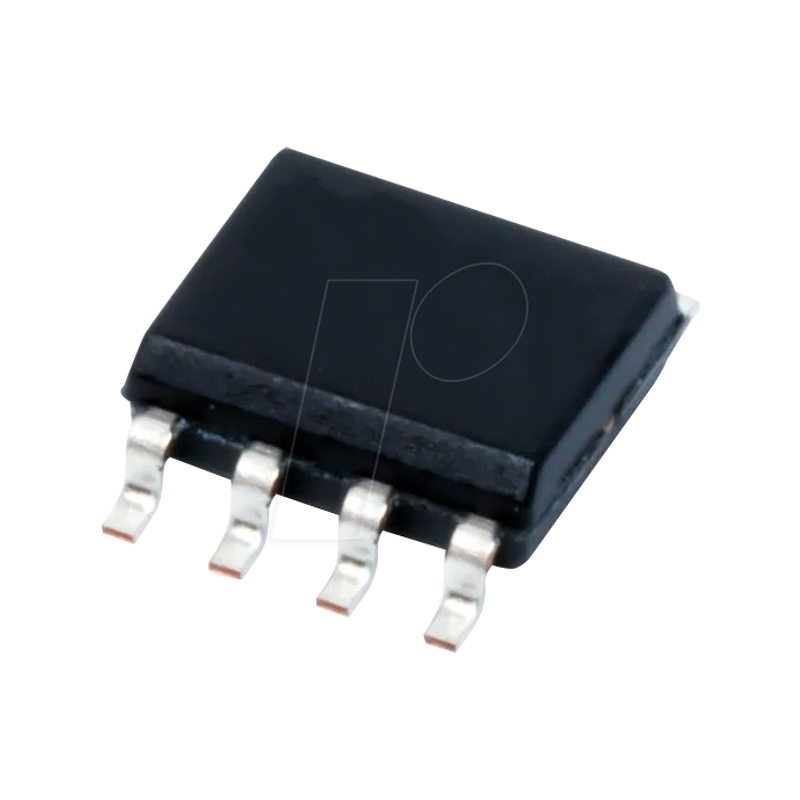

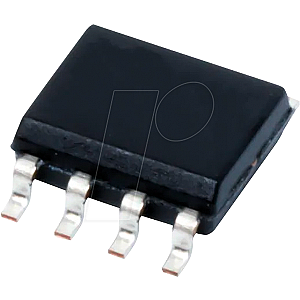

EEPROM, 2 Kb (256 x 8), 1.8 ... 5.5 V, SO-8

2-kbit EEPROM with a pre-programmed, unique 32-bit ID. This serial number is unique across all UID-families of Microchip EEPROMs. The ID is scalable to 48-bit, 64-bit, 128-bit, 256-bit (and more). The EEPROM is organised in two blocks of 128x 8-bit with a serial 2-wire interface. Low-voltage design allows operation up to 1.7 V with maximum standby and active current of only 1 µA and 1 mA.

- Pre-programmed 32-bit serial number
- Unique UID (EEPROMs)
- Scalable to 48-bit, 64-bit, 128-bit, 256-bit (and more)
- Low-power CMOS technology: 1 mA active current, typical/1 µA quiescent current (max.)
- Single supply to 1.7 V
- 2-wire interface, I²C™ compatible
- Schmitt trigger inputs for noise reduction
- Output slope control
- 100-kHz and 400-kHz clock compatibility
- Self-timed erase/write cycles
- Page write buffer: 16-byte/page
- More than 1 million delete/writing cycles
- Information storage: >200
- ESD protection: >4000 V
