The 24AA65/24LC65/24C65 (24XX65)* from Microchip Technology Inc. is an "intelligent" 8K x 8 serial, electrically erasable PROM.
Designed for advanced low-power applications such as personal communications, this device offers the system designer great flexibility by using many new features that can be programmed by the user. The 24XX65 has a sliding 4K-bit block with ultra-high-power memory for data that changes frequently. The rest of the array, i.e. 60K bits, is designed for 1,000,000 guaranteed erase/write (E/W) cycles. The 24XX65 has an input cache for fast writes with a capacity of eight pages or 64 bytes.
It also provides programmable security options for E/W protection of critical data and/or codes of up to fifteen 4K blocks. Functional address lines allow up to eight 24XX65 to be connected to the same bus for up to 512K-bit contiguous EEPROM memory.
In stock
SKU 24LC65-I/SM

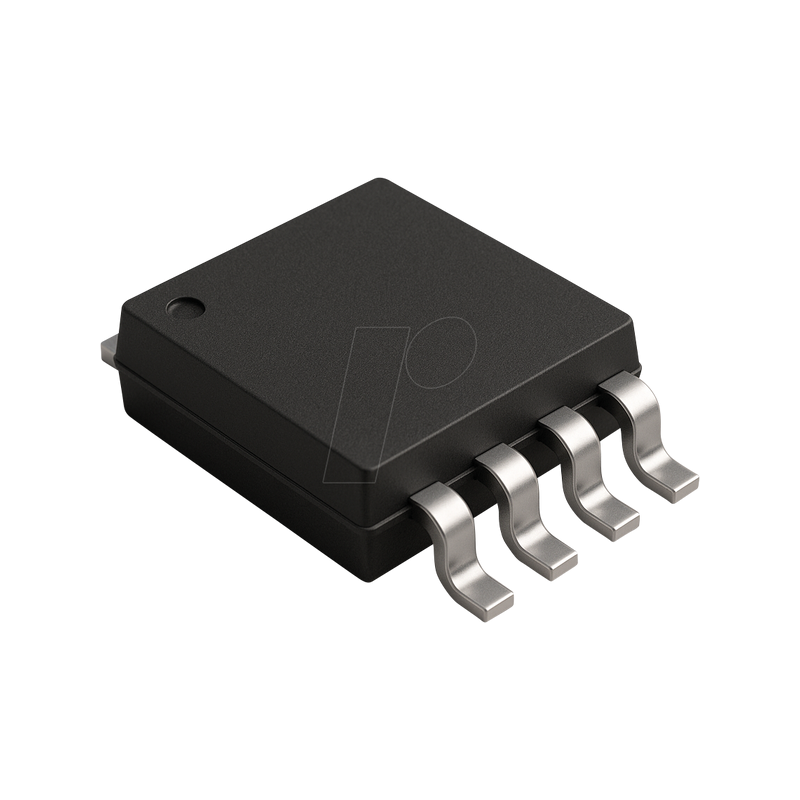

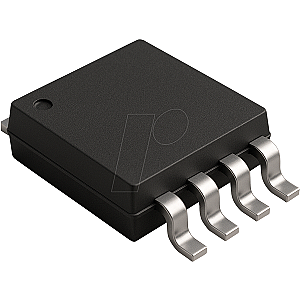

EEPROM, 64 Kb (8K x 8), I²C, 2.5 - 5.6 V, SOIJ-8
MPN 24LC65-I/SM
Manufacturer MICROCHIP
€2.12
incl. 19% VAT · €1.78 excl. VAT
Package
SOIJ-8
Specifications
General
Model
EEPROM
Type
seriell
Design
I2C
Memory
64 kb (8kx8)
Mounting form
SOIJ-8
family
24LC65
Technology
SMART
Electrical values
Supply voltage
2.5 ... 6.0 VDC
Frequency
0.4 MHz
Supply Voltage Min.
2.5 V
Supply Voltage Max.
6 V
Other
Temperature range
-40 ... +85
Specials
Write protection
ja
Implementation
Page Size
64 Bytes
Write Cycle
2 ms
Packaging
Packaging
Tube
Factory Pack Quantity
90 pieces
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
24LC65-I/SM
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900004098649
HS-Code
85423275
