8Kb Microwire (3-wire) Serial EEPROM with 16-Bit Organization
Description
The Microchip 93LC76B device is a 8Kb Microwire (3-wire) Serial EEPROM with dedicated 16-bit memory organization and a voltage operation range of 2.5 - 5.5V. Also available are the 93LC76A for dedicated 8-bit memory organization and the 93LC76C for hardware selectable word size using the ORG pin. The 93LC76B is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The device is available in a variety of Pb-free packages including SOT-23, PDIP, SOIC, MSOP and TSSOP.
Features
- Density: 8K bits (x8)
- Op. Volt Range (V): 2.5 to 5.5
- Max. Clock Freq.: 3 MHz
- Temp Range (°C): -40°C to +125°C
- Endurance: 1,000,000
In stock
SKU 93LC76B-I/SN

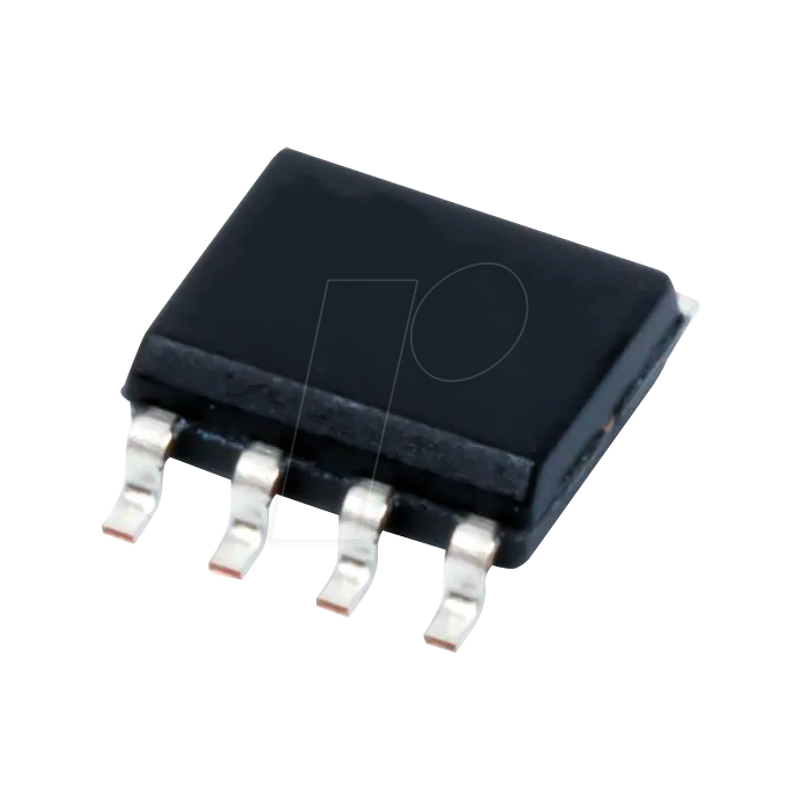

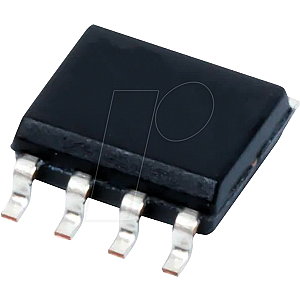

EEPROM, 8 Kb (512 x 16), Serial Microwire, 2.5 ... 5.5 V, SO-8
MPN 93LC76B-I/SN
Manufacturer MICROCHIP
€0.64
incl. 19% VAT · €0.54 excl. VAT
Package
SO-8
Specifications
General
Model
EEPROM
Type
Serial
Design
Microwire
Memory
8 kb
Mounting form
SO-8
Electrical values
Supply voltage
2.5 ... 5.5 VDC
Frequency
3 MHz
Other
Temperature range
-40 ... +85
Specials
Write protection
Yes
Energy efficiency
Durability
1.000.000 E/W Cycles h
Implementation
Page Size
- Bytes
Word Size
16 bit
Cascade
-
Write Cycle
6 ms
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
93LC76B-I/SN
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000966805
HS-Code
85423275
