The MASTERGAN1 is an advanced power system-in-package that integrates a gate driver and two GaN (enhancement type) transistors in a half-bridge configuration. The integrated GaN power transistors have an RDS(on) of 150 mΩ and a drain-source breakdown voltage of 650 V, while the high side of the embedded gate driver can be easily powered by the integrated bootstrap diode.
The MASTERGAN1 features UVLO protection in both the low and high driver sections to prevent the circuit breakers from operating at low efficiency or under hazardous conditions, and the latching function avoids cross-circuits.
Technical features
In stock
SKU MASTERGAN1

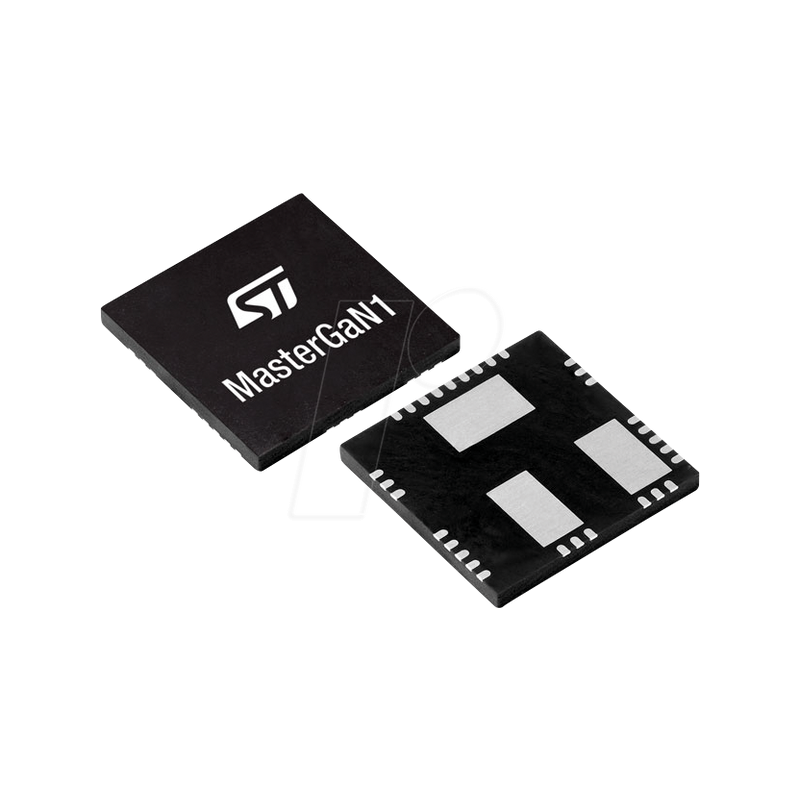

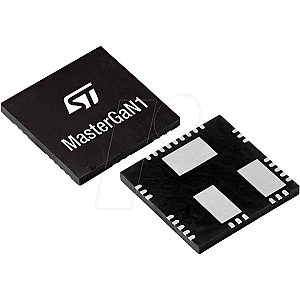

GaN H-bridge, 600 V, 10 A, RDS(ON) 0.15 Ohm, QFN-31
MPN MASTERGAN1
Manufacturer STMICROELECTRONICS
€18.46
incl. 19% VAT · €15.51 excl. VAT
Package
QFN-31
Specifications
General
Model
Gate-Treiber
Type
HEMT
Design
H-bridge
Mounting form
QFN-31
Technology
GaN
Electrical values
Supply voltage
4.75-9.5 VDC
Input voltage
3.3-15 VDC
Output Current
10 A
RDS(on)
150 mOhm
Other
Temperature range
-40 .. +125
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
MASTERGAN1
Weight
0.005 kg
RoHS
conform
EAN/GTIN
9900003166271
HS-Code
85423190
