Smart High-Side Power Switch
Description
The BTS740S2 is a dual channel high side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input, diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOS technology
Features
- Undervoltage and overvoltage shutdown with auto restart and hysteresis
- Fast demagnetization of inductive loads
- Logic ground independent from load ground
- High voltage capability
- Benchmark energy robustness
- High load dump protection
In stock
SKU BTS 740 S2

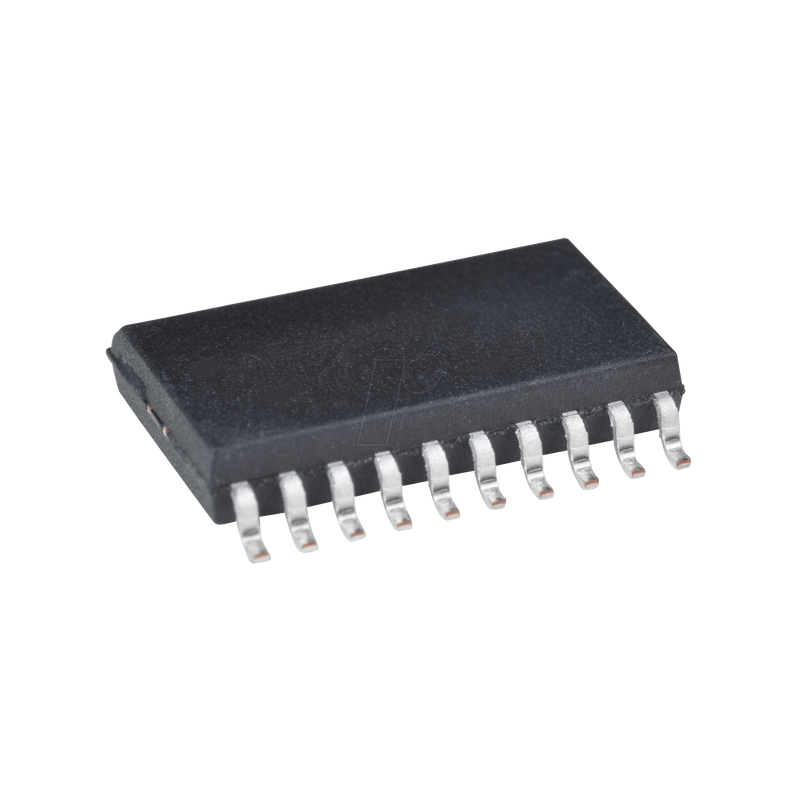

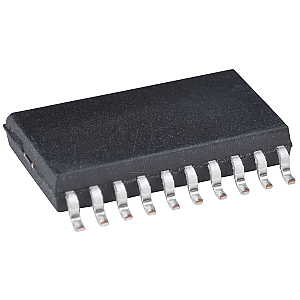

High-side circuit-breaker, 2-channel, 5 ... 34 V, SO-20
MPN BTS740S2
Manufacturer INFINEON
€8.07
incl. 19% VAT · €6.78 excl. VAT
Package
SO-20
Specifications
General
Type
Power switch
Design
N polarity
Mounting form
SO-20
Model
Switching controller
Electrical values
Input current
5.5 A
Supply voltage
5 - 34 VDC
Other
Temperature range
-40 ... +150
Manufacturer specifications
Manufacturer
INFINEON
Manufacturer ID
BTS740S2
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001888083
HS-Code
85423990
