74AHC1GU04 , Inverter
Description
The 74AHC1GU04 is a high-speed Si-gate CMOS device. It provides an inverting single stage function.
Features
- Symmetrical output impedance
- High noise immunity
- Low power dissipation
- Balanced propagation delays
- ESD protection:
-HBM JESD22-A114E: exceeds 2000 V
- MM JESD22-A115-A: exceeds 200 V
- CDM JESD22-C101C: exceeds 1000 V
- Specified from -40 °C to +125 °C
In stock
SKU 74AHC 1GU04GW

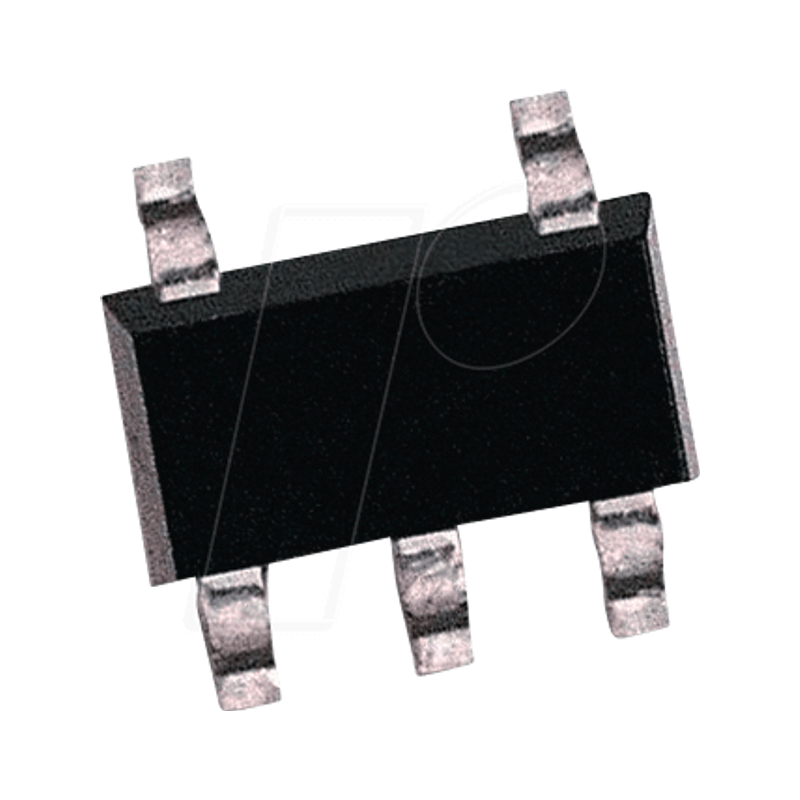

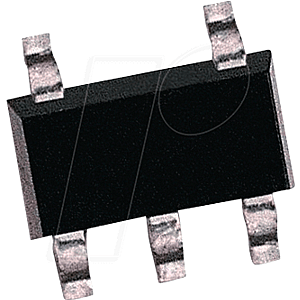

Inverter, single, 2 ... 5.5 V, 25 mA, SOT-353-5 Pin
MPN 74AHC1GU04GW,125
Manufacturer NXP
€0.13
incl. 19% VAT · €0.11 excl. VAT
Package
SOT353-5
Specifications
General
family
74AHC
Model
Inverter
Design
1-element
Mounting form
SOT353-5
Other
Temperature range
-40 ... +125
Electrical values
Supply voltage
2.0 ... 5.5 VDC
Input voltage
0 ... 5.5 VDC
Performance
250 mW
Input voltage ViH
4.4 VDC
Input voltage ViL
0.3 VDC
Manufacturer specifications
Manufacturer
NXP
Manufacturer ID
74AHC1GU04GW,125
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002191588
HS-Code
85423990
