The MIC29710 and MIC29712 are high-current voltage regulators offering high precision and low dropout. They feature a fast transient response to input voltage spikes and output load current changes. These regulators use a PNP pass-through element manufactured using the proprietary Super ßeta PNP® process.
The MIC29710/2 is available in two versions: the 3-pin fixed-output MIC29710 and the 5-pin MIC29712 with adjustable output voltage. All versions are fully protected against overcurrent faults, transposed cable entry, overtemperature operation, and positive and negative transient voltage peaks.
A TTL-compatible Enable (EN) control pin supports external on/off control. If no on/off control is required, the device can be continuously activated by connecting EN to IN.
The MIC29710/2 is available in standard 3-pin and 5-pin TO-220 enclosures with a junction temperature range of 0°C to +125°C.
Main features
In stock
SKU MIC29712WT

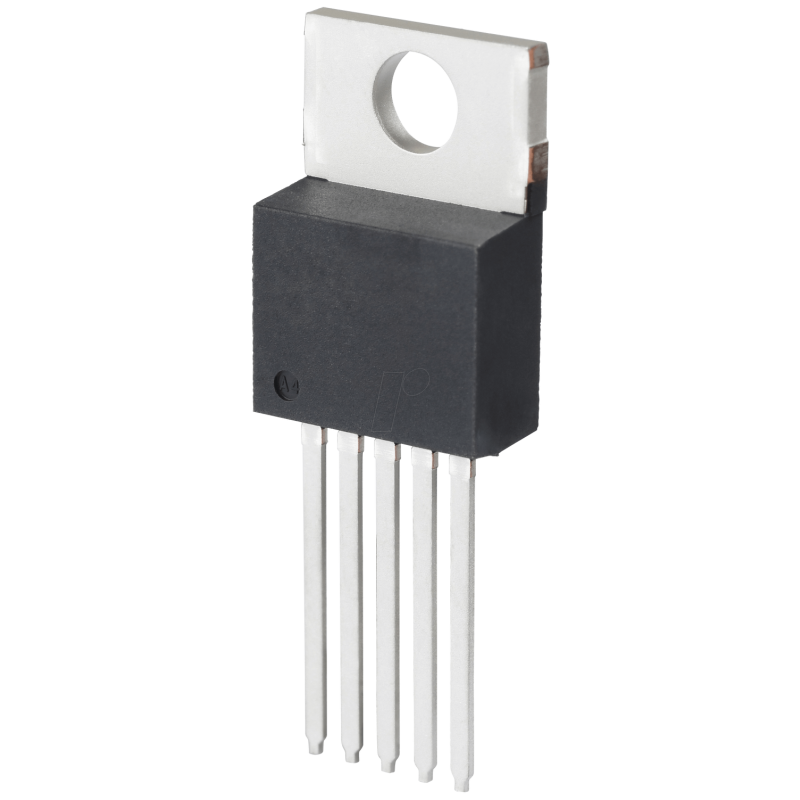

LDO, 7.5A, adj.+shutdown, TO-220-5
MPN MIC29712WT
Manufacturer MICROCHIP
€19.29
incl. 19% VAT · €16.21 excl. VAT
Specifications
General
Model
Voltage regulator
Type
LDO
Electrical values
Output voltage
1.25..16 V DC
Output Current
7.5 A
Input voltage
2.3..16 VDC
Voltage Drop
0.7 V
Input Noise Voltage
260 µV
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MIC29712WT
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003722262
HS-Code
85423990
