The MCP1755S-3302E/DB is a 3.3V fixed output CMOS low-dropout (LDO) linear regulator can deliver up to 300mA of current while consuming only 68µA of quiescent current (typical). The input operating range is specified from 3.6 to 16V, making it an ideal choice for four to six primary cell battery-powered applications, 12V mobile applications and one to three cell Li-Ion powered applications. The device is capable of delivering 300mA with only 300mV (typical) of input-to-output voltage differential. The output voltage tolerance of the device is typically +0.85% at +25°C and ±2.0% maximum over the operating junction temperature range of -40°C to +125°C. Line regulation is ±0.01% typical at +25°C. The LDO output is stable when using only 1µF of output capacitance. Ceramic, tantalum or aluminium electrolytic capacitors may all be used for input and output.
Features:
In stock
SKU MCP 1755S-3302ED

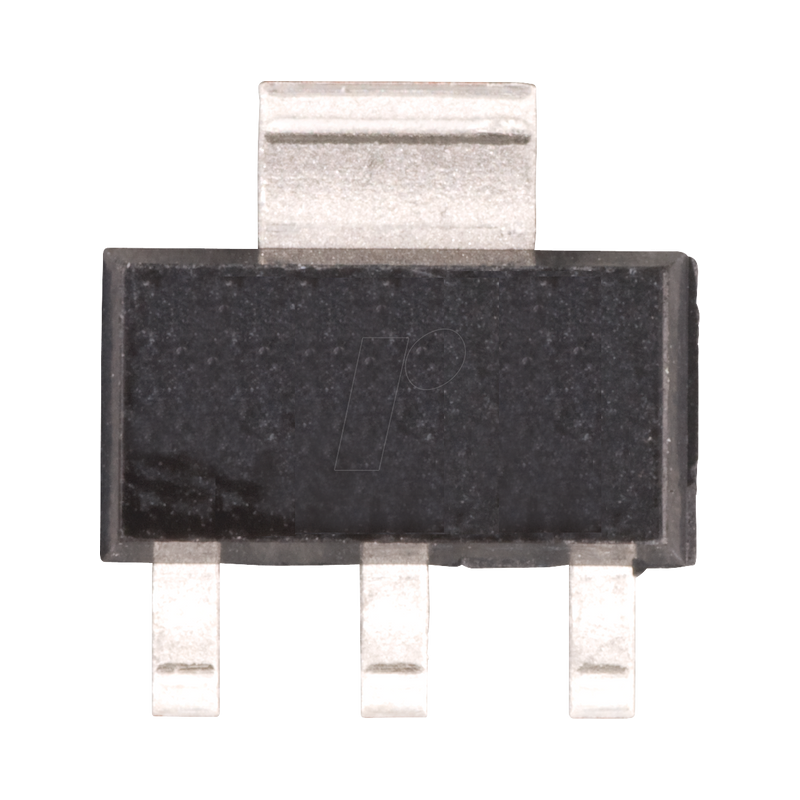

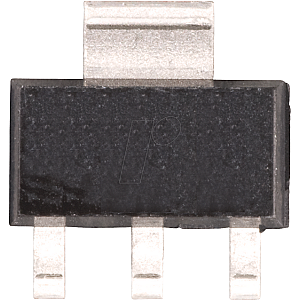

LDO regulator, fixed, 300mA, 3.3 V, SOT-223-3
MPN MCP1755S-3302E/DB
Manufacturer MICROCHIP
€1.77
incl. 19% VAT · €1.49 excl. VAT
Package
SOT-223
Specifications
General
Model
Controller
Type
Low dropout
Design
Power Management
Mounting form
SOT-223
Technology
with Shutdown
Electrical values
Output voltage
3.3 V DC
Output Current
0.3 A
Input voltage
+3.6 ... +16 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP1755S-3302E/DB
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001437298
HS-Code
85423990
