The MCP1755ST-3302E/DB is a 16V high PSRR low dropout Voltage Regulator with short-circuit current fold back. This regulator provides up to 300mA of current. The input operating voltage range is specified from 3.6 to 16V continuous, 18V absolute maximum. The MCP1755S typically delivers 70dB of ripple rejection at 1kHz, making the device ideal for AC sensitive applications like GFCI and AFCI circuit breaker designs. The current fold back feature is a true short-circuit current fold back. The device current will fall back towards 10mA under short-circuit conditions. When the short is removed, the device will recover and continue operating.
Features:
In stock
SKU MCP 1755ST-3302E

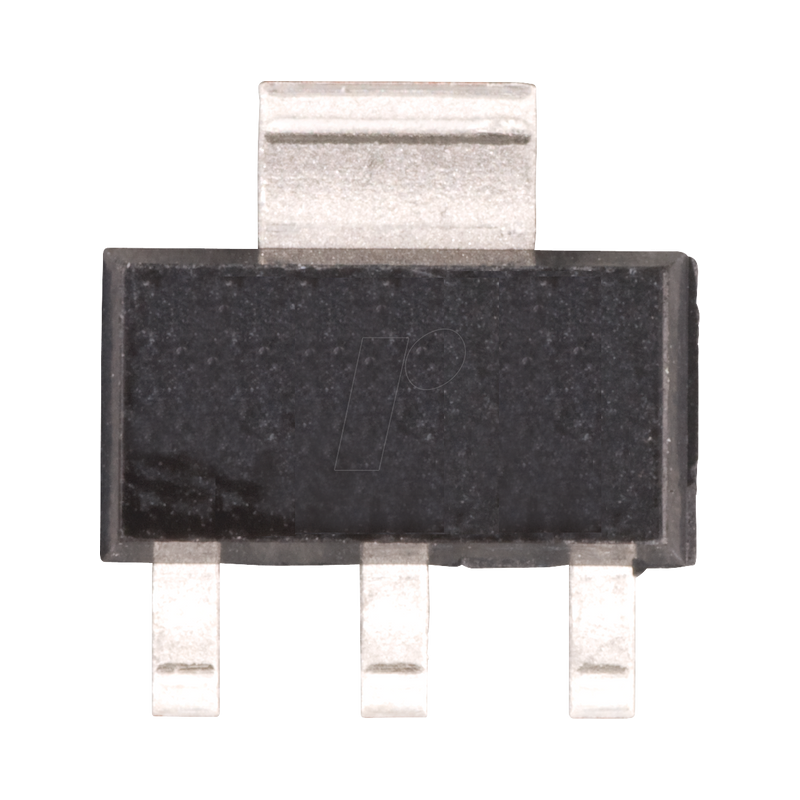

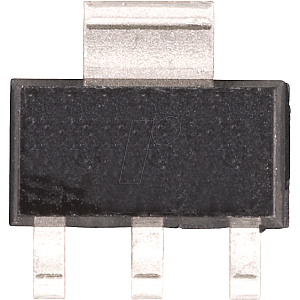

LDO regulator, fixed, 300mA, 3.3 V, SOT-223-3
MPN MCP1755ST-3302E/DB
Manufacturer MICROCHIP
€1.64
incl. 19% VAT · €1.38 excl. VAT
Package
SOT-223-3
Specifications
General
Model
Controller
Type
Low dropout
Design
Power Management
Mounting form
SOT-223-3
Technology
with Shutdown
Electrical values
Output voltage
3.3 V DC
Output Current
0.3 A
Input voltage
+3.6 ... +16 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP1755ST-3302E/DB
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001449031
HS-Code
85423990
