The MCP1702 is a low dropout positive CMOS voltage regulator with a maximum output current of 250 mA. The MCP1702 operates with an input voltage of up to 13.2 V and, in combination with its low power consumption of 2 µA, is an ideal solution for applications with multi-cell 9 V alkaline or single- or double-cell lithium-ion batteries.
Key features
In stock
SKU MCP1702-1802TO

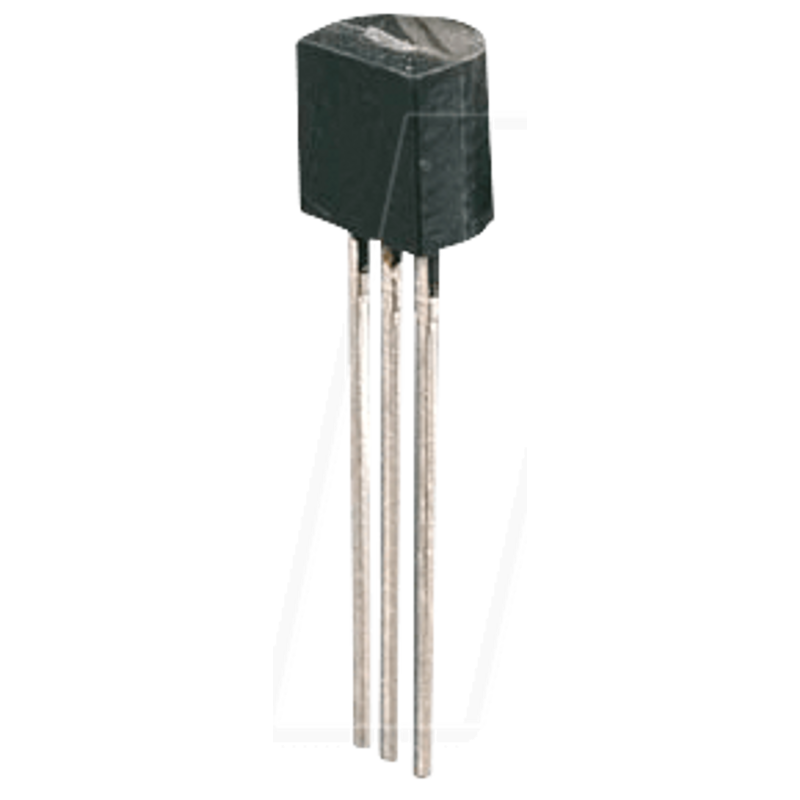

LDO regulator, Uin 2.7..13.2V, Uout 1.8V, TO-92
MPN MCP1702-1802E/TO
Manufacturer MICROCHIP
€1.34
incl. 19% VAT · €1.13 excl. VAT
Package
TO-92
Specifications
General
Model
Voltage regulator
Type
Low dropout
Design
Fixed
Mounting form
TO-92
Electrical values
Output voltage
1.8 V DC
Output Current
0.25 A
Input voltage
2.7..13.2 VDC
Other
Temperature range
-40..+125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP1702-1802E/TO
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900003488588
HS-Code
85423990
