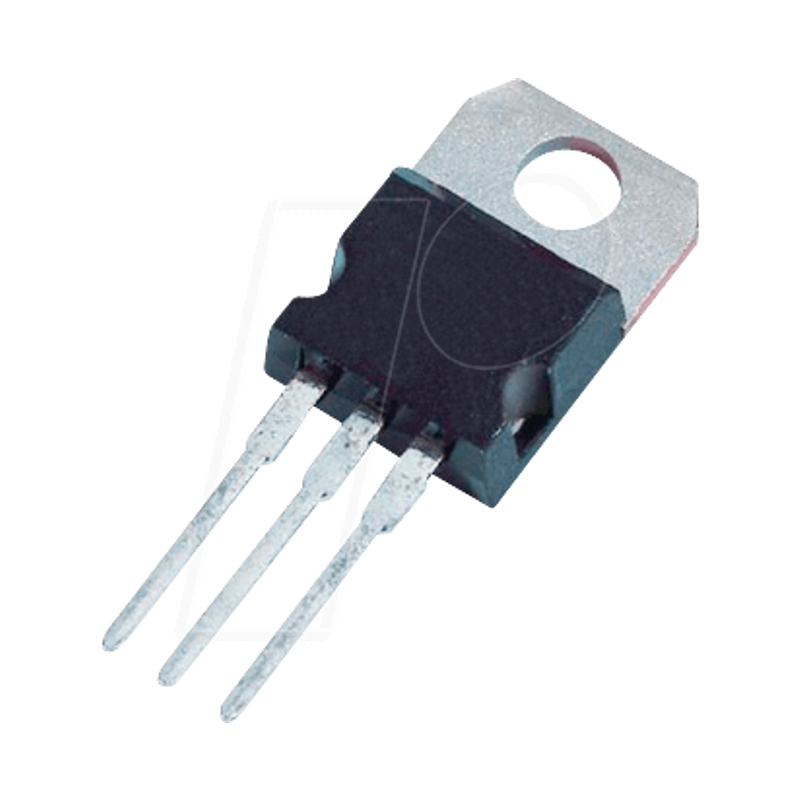

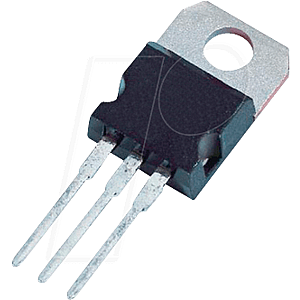

LDO voltage regulator, 3.3 V, 5 A, TO-220

LM1084 5-A Low Dropout Positive Regulators

Description:
The LM1084IT-3.3/NOPB is a 5A Low Dropout Positive Regulator with a maximum dropout of 1.5V at 5A of load current. The device has the same pinout as TI's industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1084. Fixed output voltage versions integrate the adjust resistors. The LM1084 circuit includes a Zener trimmed bandgap reference, current limiting and thermal shutdown.

Features:
- Available in 3.3-V, 5.0-V, and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 5 A
- Industrial Temperature Range -40°C to 125°C
- Line Regulation 0.015% (Typical)
- Load Regulation 0.1% (Typical)

Applications:
- Post Regulator for Switching DC-DC Converter
- High-Efficiency Linear Regulators
- Battery Chargers
