The MCP1754/MCP1754S is a 16-V PSRR LDO voltage regulator. The MCP1754/MCP1754S regulators provide up to 5150 mA of current. The typical operating range is between 3.6 V and 16 V. 18 V is an absolute maximum.
Ideally it is used in 12-V systems. The latest foldback function is a real short-circuit current foldback function. The component resets in the event of a 10-mA short circuit.
In stock
SKU MCP 1754-5002CB

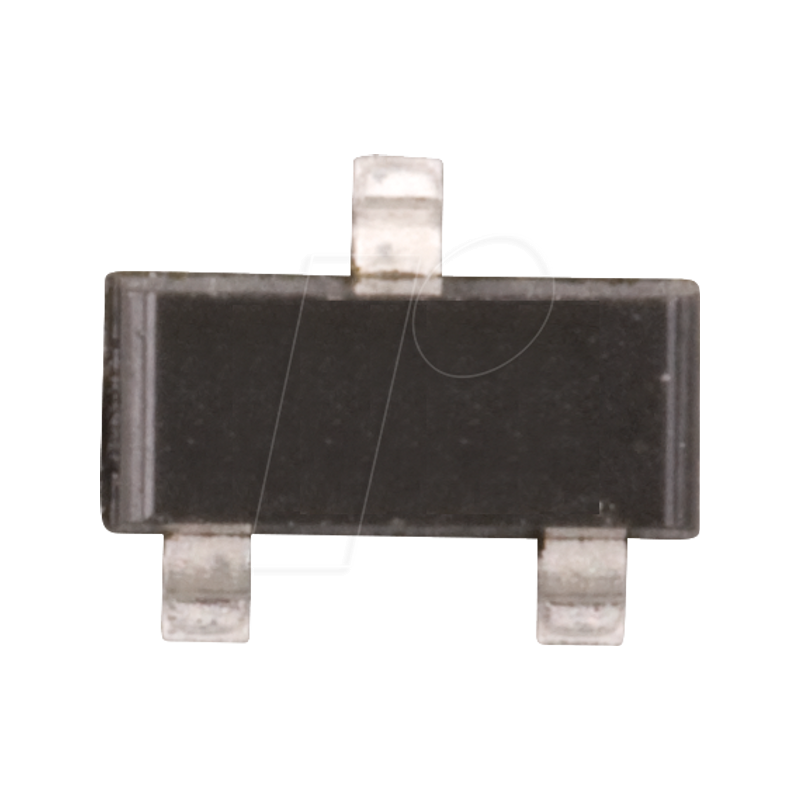

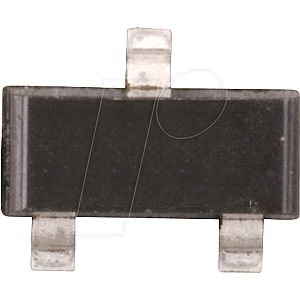

LDO voltage regulator, fixed, 150mA, 5 V, SOT-23-3
MPN MCP1754ST-5002E/CB
Manufacturer MICROCHIP
€1.09
incl. 19% VAT · €0.92 excl. VAT
Package
SOT-23
Specifications
General
Model
Controller
Type
Low dropout
Design
Power Management
Mounting form
SOT-23
Technology
CMOS
Electrical values
Output voltage
5 V DC
Output Current
0.15 A
Input voltage
+3.6 ... +16 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP1754ST-5002E/CB
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001372971
HS-Code
85423990
