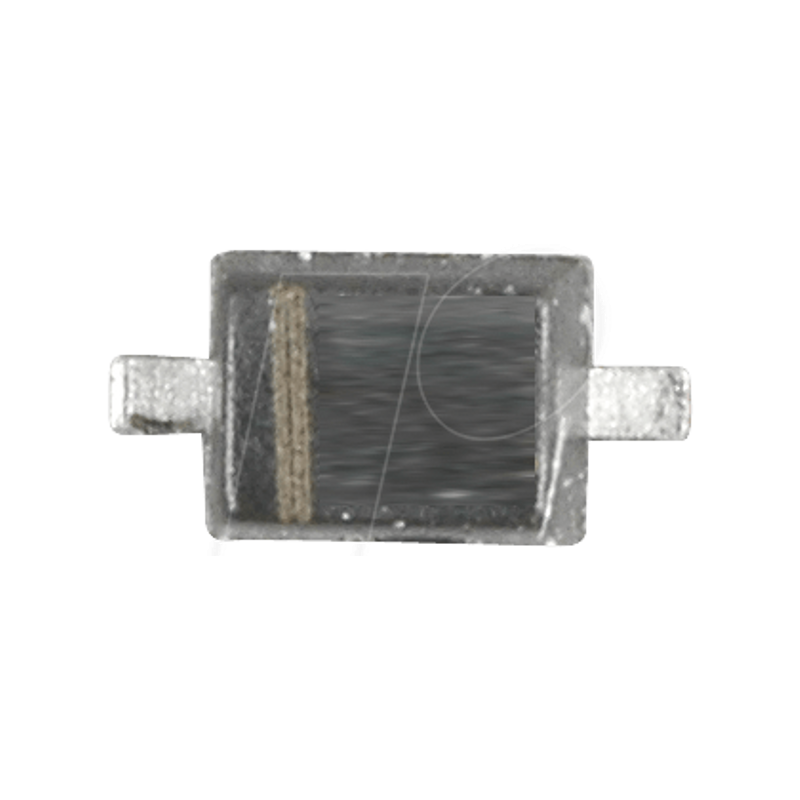

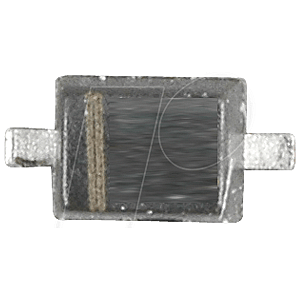

LED-Treiber, 1-Kanal, SOD-123

MPN NSI45020AT1G Hersteller ONSEMI

0,34 €

Technische Daten

Allgemeines

Modell LED-Treiber

Typ CCR

Ausführung Konstantstromregler

Bauform SOD-123

Elektrische Werte

Eingangsspannung max. 45 VDC

Ausgangsstrom 0,02 A

Sonstiges

Temperaturbereich -55 .. +150 °C

Herstellerangaben

Hersteller ONSEMI

Artikelnummer des Herstellers NSI45020AT1G

Verpackungsgewicht 0.001 kg

RoHS konform

EAN/GTIN 9900001890994

Statistische Warennummer 85423990

↓ Datenblatt ON

The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost-effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents.

Features
- Robust Power Package: 460 mW
- Wide Operating Voltage Range
- Immediate Turn-On
- Voltage Surge Suppressing - Protecting LEDs
- UL94-V0 Certified
- SBT (Self-Biased Transistor) Technology
- Negative Temperature Coefficient
- NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Applications
- Automobile: Chevron Side Mirror Markers, Cluster, Display &
Instrument Backlighting, CHMSL, Map Light
- AC Lighting Panels, Display Signage, Decorative Lighting, Channel Lettering
- Switch Contact Wetting
- Application Note AND8391/D - Power Dissipation Considerations
- Application Note AND8349/D - Automotive CHMSL
