3-PIN Switch Mode LED Lamp Driver IC
Description
HV9921/HV9922/HV9923 are pulse-width modulated (PWM), high-efficiency, LED driver control ICs. They allow efficient operation of LED strings from voltage sources ranging up to 400VDC. HV9921/22/23 include an internal high voltage switching MOSFET controlled with fixed off-time (TOFF) of approximately 10µs. The LED string is driven at constant current, thus providing constant light output and enhanced reliability. The output current is internally fixed at 20mA for HV9921, 50mA for HV992, and 30mA for HV9923. The peak current control scheme provides good regulation of the output current throughout the universal AC line voltage range of 85 to 264VAC or DC input voltage of 20 to 400V.
Features
- Constant output current:
- HV9921 - 20mA
- HV9922 - 50mA
- HV9923 - 30mA
- Universal 85 - 264VAC operation
- Fixed off-time buck converter
- Internal 475V power MOSFET
Applications
- Decorative lighting
- Low power lighting fixtures
In stock
SKU HV9921N3-G

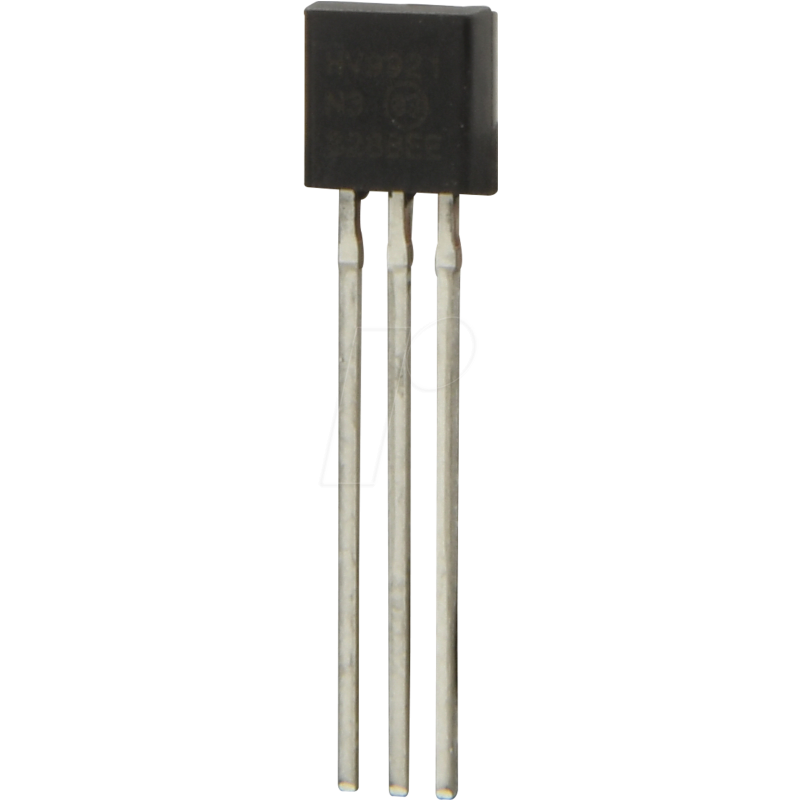

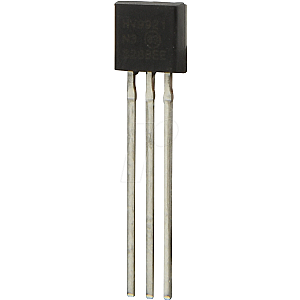

LED driver, 1-fold, 20 ... 400 Vin, 20 mAout, TO-92
MPN HV9921N3-G
Manufacturer MICROCHIP
€1.50
incl. 19% VAT · €1.26 excl. VAT
Package
TO-92
Specifications
General
Model
LED driver
Type
Constant power source
Design
1-fold
Mounting form
TO-92
Electrical values
Supply voltage
20 .. 400 VDC
Output Current
0.02 A
Other
Temperature range
-40 .. +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
HV9921N3-G
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001536144
HS-Code
85423310
