The BCR420U and BCR421U monolithically integrate transistors, diodes and resistors to function as a Constant Current Regulator (CCR) for linear LED driving. The device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 350mA. It is designed for driving LEDs in strings and will reduce current at increasing temperatures to self-protect. Operating as a series linear CCR for LED string current control, it can be used in multiple applications, as long as the maximum supply voltage to the device is < 40V.
In stock
SKU BCR 421 UW6-7

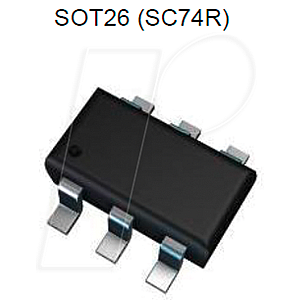

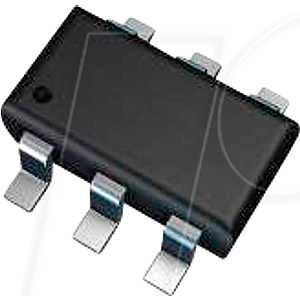

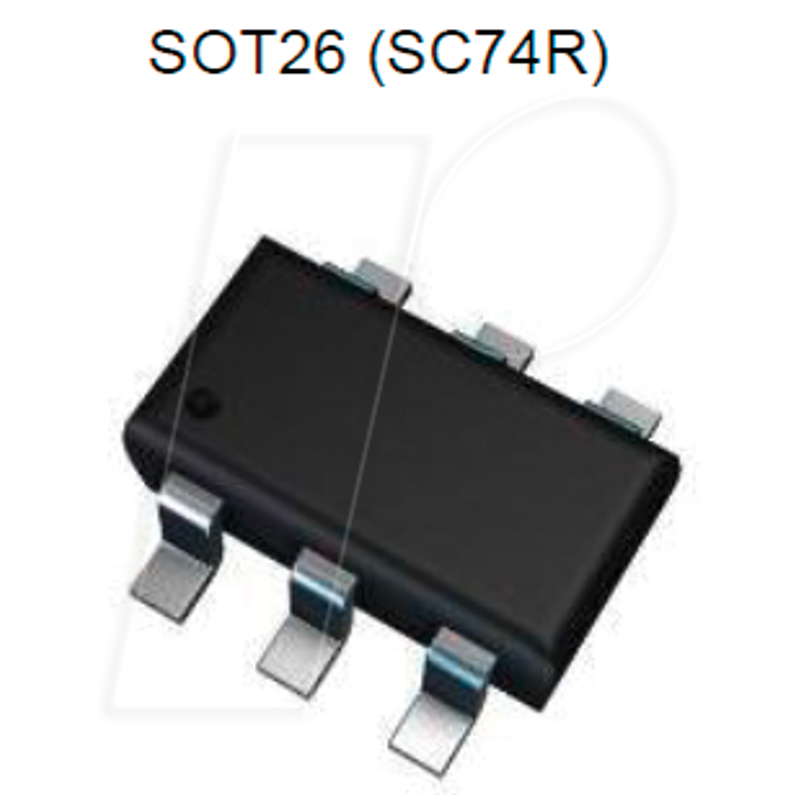

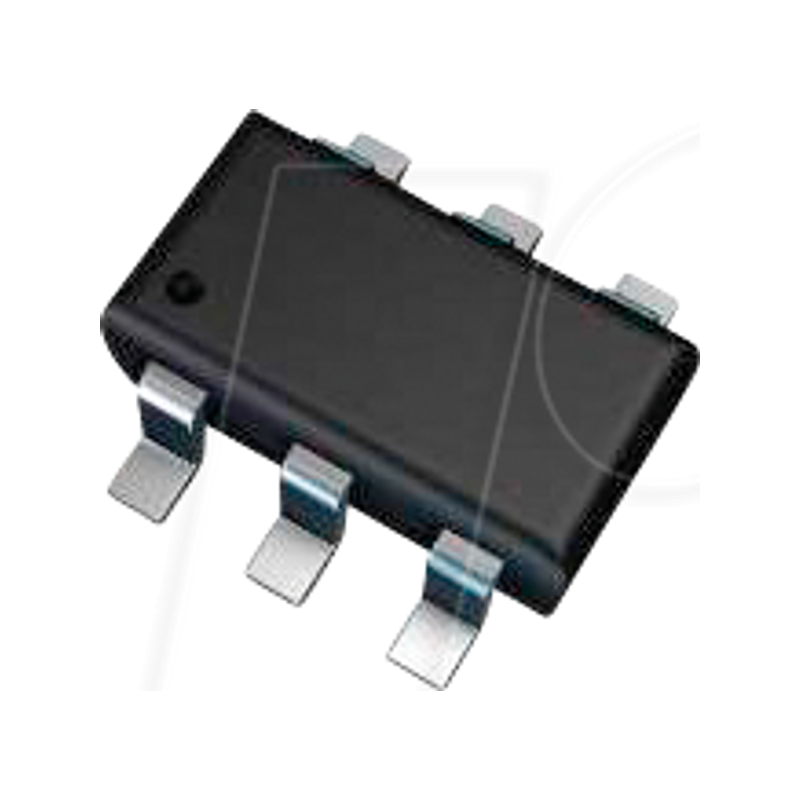

LED driver, constant current regulator, 40 V, 500 mA, SOT-26
MPN BCR421UW6-7
Manufacturer DIODES INCORPORATED
€0.30
incl. 19% VAT · €0.25 excl. VAT
Package
SOT-26
Specifications
General
Model
LED driver
Design
Fixed
Mounting form
SOT-26
Electrical values
Output voltage
40 V DC
Output power
3.3 - 18 W
Other
Temperature range
-55 .. +150
Manufacturer specifications
Manufacturer
DIODES INCORPORATED
Manufacturer ID
BCR421UW6-7
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001890772
HS-Code
85423990
