The AL5802 combines a high gain NPN transistor with a pre-biased NPN transistor to make a simple small footprint LED driver. The LED current is set by an external resistor connected from REXT pin (6) to GND pin (4), the internal high gain transistor develops approximately 0.6V, across the external resistor.
In stock
SKU AL 5802-13

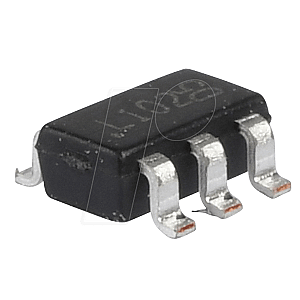

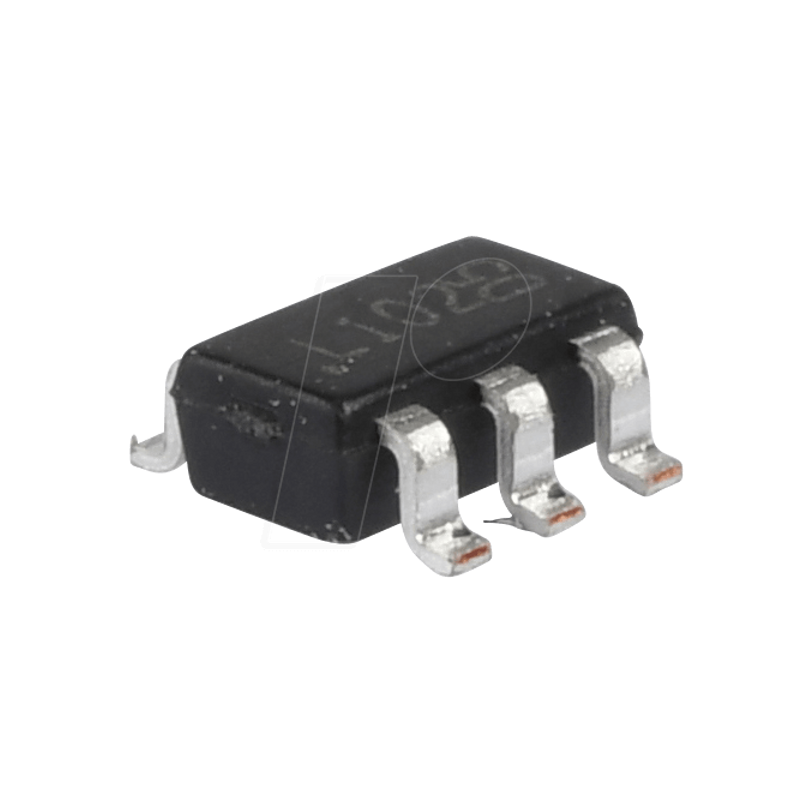

LED driver, constant current regulator, SOT-26
MPN AL5802-13
Manufacturer DIODES INCORPORATED
€0.39
incl. 19% VAT · €0.33 excl. VAT
Package
SOT-26
Specifications
General
Model
LED driver
Type
Adjustable
Mounting form
SOT-26
Electrical values
Input voltage
5 - 24 VDC
Output voltage
0.8 - 30 V DC
Other
Temperature range
-40 .. +125
Measures
Width
120 mm
Manufacturer specifications
Manufacturer
DIODES INCORPORATED
Manufacturer ID
AL5802-13
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001887949
HS-Code
85423990
