Main features
- LIN 2.x/ISO 17987-4:2016 (12 V)/SAE J2602-compliant
- Baud rate up to 20 kBd (/20 and B variants)
- Very low electromagnetic emission (EME)
- High electromagnetic immunity (EMI)
- Passive behaviour in de-energised state
- Input level compatible with 3.3-V and 5-V devices
- Integrated terminating resistor for LIN responder applications
- Wake-up source detection (local or remote)
- K-line compatible
- Pin-to-pin compatible with TJA1020 and MC33662(B)
- Available in SO8 and HVSON8 enclosures
- HVSON8 lead-free enclosure (3.0 mm x 3.0 mm) with low thermal resistance for support
Ability to perform automated optical inspection (AOI)

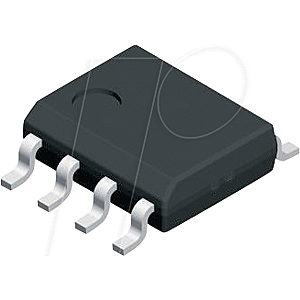

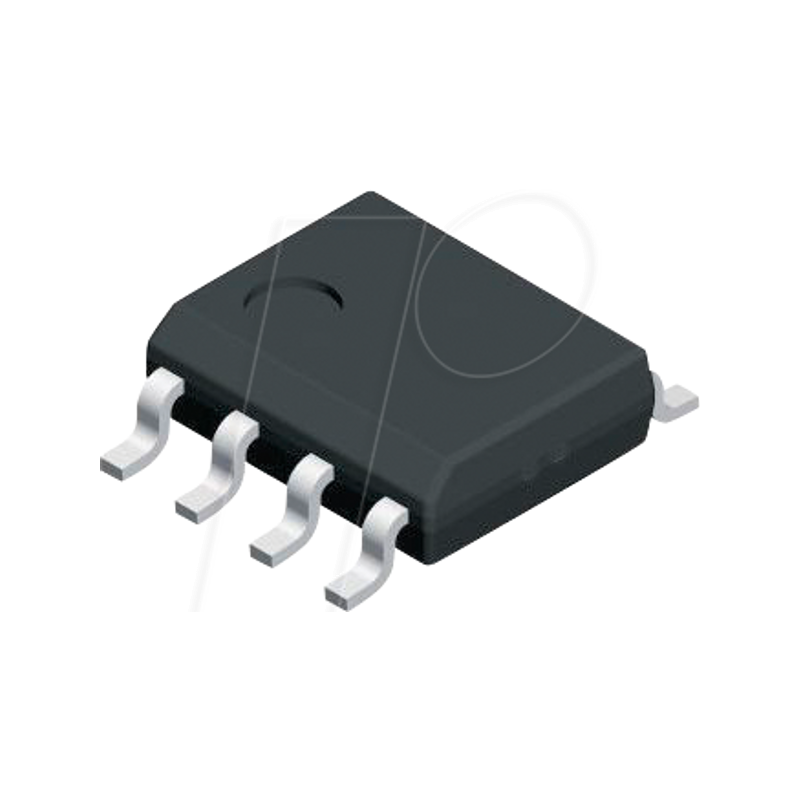

LIN transceiver, 5 - 27 V, 20 kb/s, 2.2 A, SO-8
€0.75TJA1021T
Technical information
| General | |
|---|---|
| Type | LIN-Transceiver |
| Design | 2.2A |
| Mounting form | SO-8 |
| Manufacturer specifications | |
| Manufacturer | NXP |
| Manufacturer ID | TJA1021T/20/C,118 |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900003871656 |
| HS-Code | 85423990 |
