100 mA Positive Voltage Regulators
Description
The MC78L00A Series of positive voltage regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. Like their higher powered MC7800 and MC78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the MC78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode-resistor combination, as output impedance and quiescent current are substantially reduced.
Features
- Wide Range of Available, Fixed Output Voltages
- Low Cost
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- No External Components Required
- Complementary Negative Regulators Offered (MC79L00A Series)
- Pb-Free Packages are Available
In stock
SKU MC 78L18 ACPG

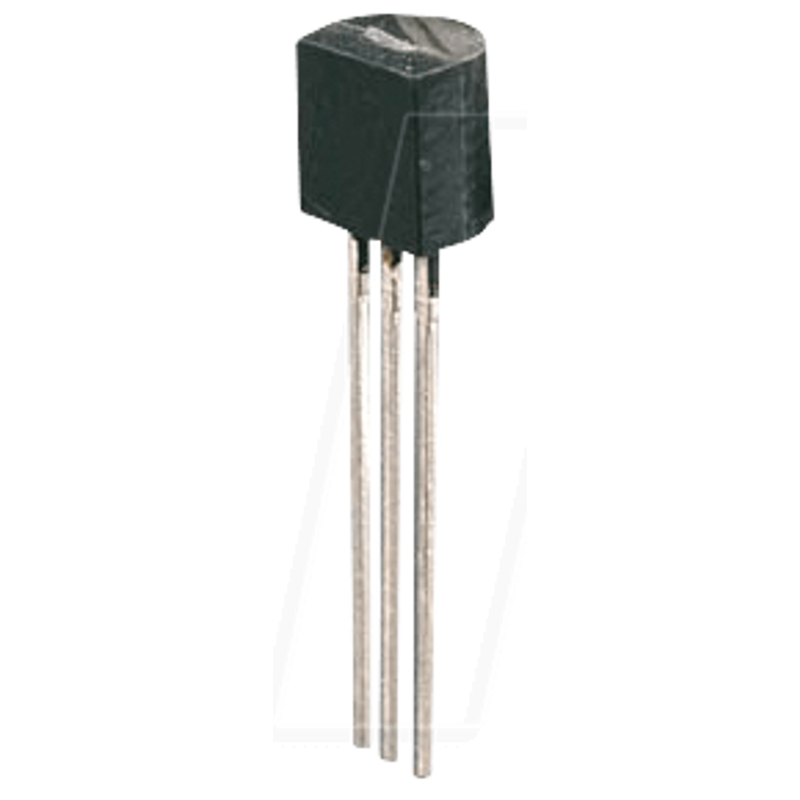

Linear fixed voltage regulator, 18 V, 100 mA, TO-92
MPN MC78L18ACPG
Manufacturer ONSEMI
€0.46
incl. 19% VAT · €0.39 excl. VAT
Package
TO-92
Specifications
General
Model
Voltage regulator
Design
Fixed
Mounting form
TO-92
Electrical values
Output voltage
18 V DC
Output Current
0.1 A
Input voltage
21.4 - 33 VDC
Other
Temperature range
0 ... +125
Manufacturer specifications
Manufacturer
ONSEMI
Manufacturer ID
MC78L18ACPG
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001889066
HS-Code
85423990
