LPC 21xx/22xx 16/32-bit Flash microcontroller, ARM7TDMI
- ISP - Flash in-system programming
- IAP - in-application programming
- CPU supply: 1.65 - 1.95 V/3.0 - 3.6 V
- I/O supply: 3.0 - 3.6 V
- Fast I²C/2 UARTs/2 SPIs/PWM
- 4 32-bit timers including RTC and Watchdog
In stock
SKU LPC 2103 FBD48

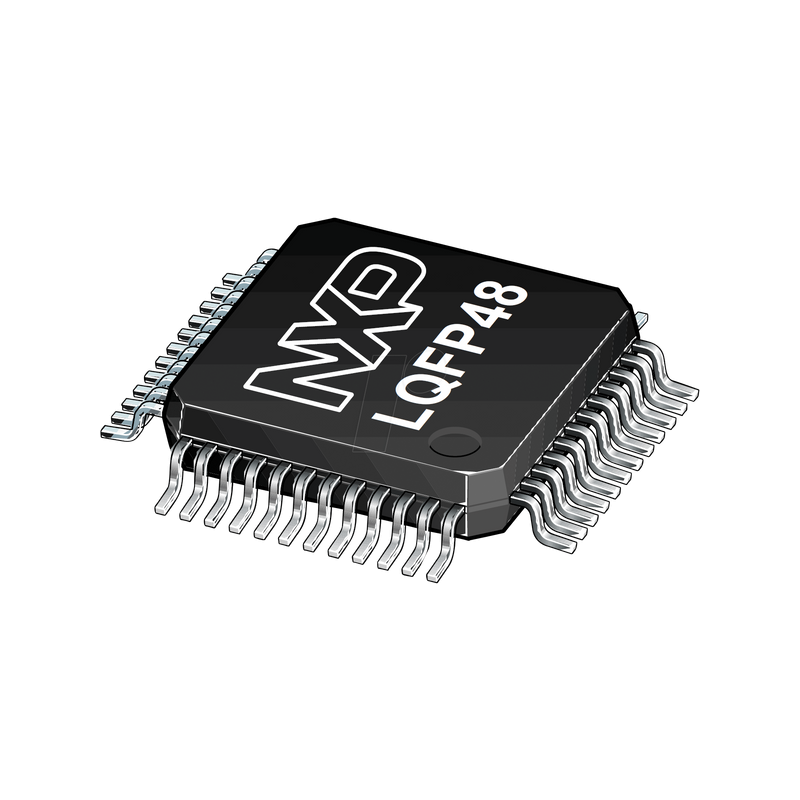

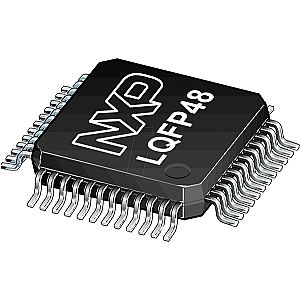

MCU, ARM, 16-bit, 128 KB, LQFP-48
MPN LPC2106FBD48EL
Manufacturer NXP
€12.79
incl. 19% VAT · €10.75 excl. VAT
Package
LQFP-48
Specifications
General
Core
ARM7TDMI-S
Model
ARM7TDMI
Mounting form
LQFP-48
Type
16|32-Bit Mikrocontroller
Technology
ARM
Implementation
Series
LPC2100
Memory
32 Flash
RAM
8 kByte
I/O-Pins
32
16-bit Timer
2
32-bit Timer
2
Internal oscillator
Yes
EEPROM
Yes
Memory controller
16, 32
Specials
CPU clock
70 MHz
Electrical values
Supply voltage
1.65 ... 3.6 VDC
Supply Voltage Min.
1.65 V
Supply Voltage Max.
3.6 V
Output voltage
0 - 3.6 V DC
Input current
3 µ A
Output Current
±4 m A
Other
Temperature range
-40..+85
Interfaces
I²C
Yes
UART
Yes
Manufacturer specifications
Manufacturer
NXP
Manufacturer ID
LPC2106FBD48EL
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900000683993
HS-Code
85423190
