ATMEGA8L-8PU
Description:
Microchip's high-performance, low-power 8-bit AVR® RISC-based microcontroller combines 8 KB of ISP flash memory with read and write capabilities, 512B EEPROM, 1 KB SRAM, 23 common I/O lines, 32 common working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, one byte-oriented serial two-wire interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF package), programmable watchdog timer with internal oscillator, serial SPI connector and five software selectable power saving modes. The device operates between 2.7-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves a throughput of nearly 1 MIPS per MHz, balancing power consumption and processing speed.

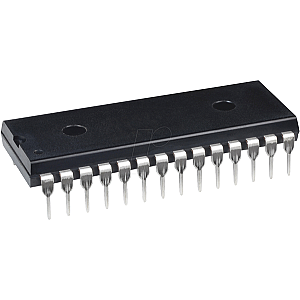

Housing: S-DIL-28 mil300
MHz: 8
Flash: 8KB
EEProm: 512
RAM: 1K
1-UART, 1-SPI, 1-I2C
1 Input Capture, 1 CCP, 3PWM
In stock
SKU ATMEGA 8L8 DIP
MCU, ATMega AVR RISC, 8 KB, 8 MHz, PDIP-28
MPN ATMEGA8L-8PU
Manufacturer MICROCHIP
€5.20
incl. 19% VAT · €4.37 excl. VAT
Package
PDIP-28
Specifications
General
Type
8-bit microcontroller
Technology
AVR RISC architecture
Model
ATmega8L-8PI
Design
Watchdog
Mounting form
PDIP-28
Specials
CPU clock
8 MHz
Implementation
Memory
8
RAM
1 kByte
EEPROM
512 Byte
I/O-Pins
23
8-bit Timer
2
16-bit Timer
1
PWM
3
Analog comparator
1
Interfaces
SPI
1
ODC
14
UART
1
Electrical values
Supply voltage
+2.7 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATMEGA8L-8PU
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900000450250
HS-Code
85423190
