- High performance, low power AVR ® 32 UC 32-bit microcontroller
- Multi-hierarchy bus system
- Internal high-speed Flash
- Internal high-speed SRAM, single cycle access at full speed
- External memory interface on AT32UC3A0 Derivative
- Interrupt Controller
- Various system functions
- Universal Serial Bus (USB)
- Ethernet MAC 10/100 Mbps interface
- One three-channel 16-bit timer/counter (TC)
- One 7-channel 16-bit pulse width modulator (PWM)
- Four Universal Synchronous/Asynchronous Receiver Transmitters (USART)
- Two master/slave Serial Peripheral Interface (SPI) with chip select signals
- One synchronous serial protocol controller
- One master/slave Two-Wire Interface (TWI), 400 kbit/s, I²C compatible
- One 8-channel 10-bit analogue-digital converter
- 16-bit stereo audio bitstream
- On-chip debug system (JTAG interface)
- Input 5 V tolerant I/Os
- Single 3.3 V or dual 1.8 V - 3.3 V voltage supply
In stock
SKU AT32 UC3A0512

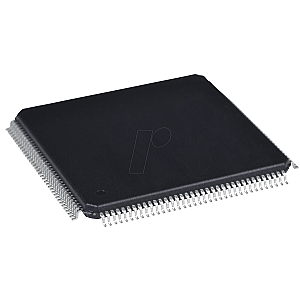

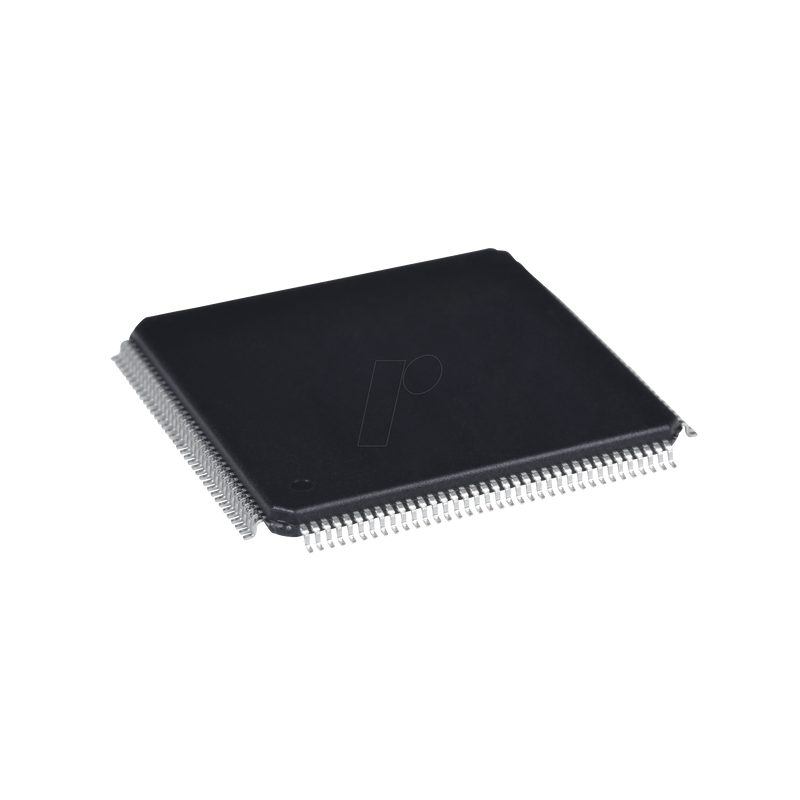

MCU, AVR32, 32-bit, 512 KB, LQFP-144
MPN AT32UC3A0512-ALUT
Manufacturer MICROCHIP
€18.41
incl. 19% VAT · €15.47 excl. VAT
Package
LQFP-144
Specifications
General
Model
AT32UC3A
Mounting form
LQFP-144
Design
Watchdog, USB, Ethernet MAC
Type
32-bit microcontroller
Technology
AVR RISC architecture
Specials
CPU clock
66 MHz
Implementation
Memory
512
RAM
64 kByte
I/O-Pins
109
16-bit Timer
3
PWM
16-Bit
Electrical values
Supply voltage
1.8 ... 3.3 VDC
Supply Voltage Min.
1.8 V
Supply Voltage Max.
3.3 V
Other
Temperature range
-40..+85
Interfaces
ODC
8
I²C
1
SPI
2
UART
4
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
AT32UC3A0512-ALUT
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900001157035
HS-Code
85423190
