Microchips dsPIC33EV family of digital signal controllers (DSCs) features a 5-V 70-MIPS dsPIC DSC core with enhanced on-chip features and is ideal for operating in harsh environments such as appliances and automotive applications. The 5-V dsPIC33EV family comes with rich peripheral integration which includes CAN, SENT, High Speed PWMs, OP Amps and Error Correcting Code Flash for increased reliability and safety. The dsPIC33EV family of devices enable the design of high-performance, precision motor control systems that are more energy efficient. They can be used to control BLDC, permanent magnet synchronous, AC induction and stepper motors. These devices are ideal for automotive applications and high-performance general purpose applications.
Technical data:
- Program memory: 256 KB
- SRAM: 16 KB
- 16-bit timers: 5
- 32-bit timers: 2
- UART: 2
- SPI: 2
- ADC inputs: 11
- GPIO: 21
In stock
SKU 33EV256GM102-ISO

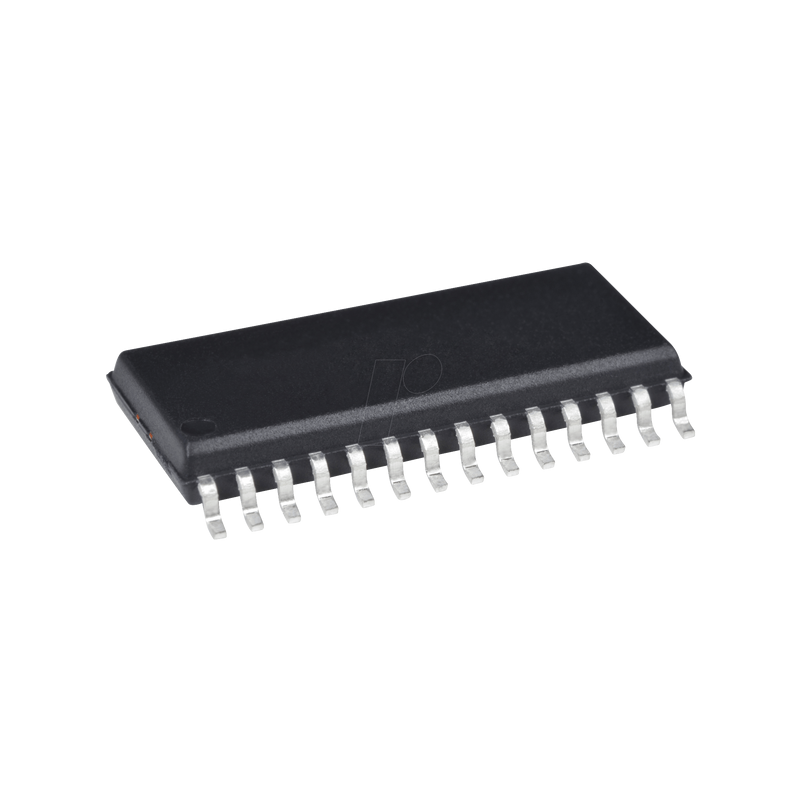

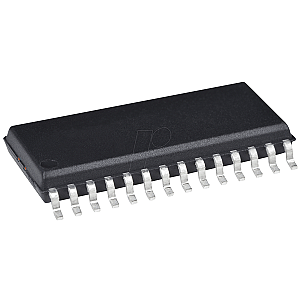

MCU, dsPIC, 16-bit, 256 KB, SO-28
MPN DSPIC33EV256GM102-I/SO
Manufacturer MICROCHIP
€7.94
incl. 19% VAT · €6.67 excl. VAT
Package
SOIC-28
Specifications
General
Model
Digital signal controller
Mounting form
SOIC-28
Design
CAN, I2C, SPI, UART
Type
16-Bit Mikrocontroller
Technology
DSC
Specials
CPU clock
70 MHz
Protocoll
CAN
Implementation
Memory
256
RAM
16 kByte
I/O-Pins
21
Timer
7
16-bit Timer
5
32-bit Timer
2
PWM
10
Electrical values
Supply voltage
4.5 ... 5.5 VDC
Supply Voltage Min.
3 V
Supply Voltage Max.
5.5 V
Other
Temperature range
-40..+85
Interfaces
ODC
11
I²C
1
SPI
2
UART
2
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
DSPIC33EV256GM102-I/SO
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001537097
HS-Code
85423190
