The PIC16F13145 family of microcontrollers offers an effective way to implement hardware-based solutions. The introduction of the CLB (Configurable Logic Block) peripherals allows users to integrate hardware-based, customer-specific logic into their applications. The CLB consists of 32 individual logic elements with extensive customisation options. CPU-independent operation improves response time and power consumption. The product family is available in a variety of housings and offers up to 14 KB of program flash memory and up to 1 KB of RAM. In addition to CLB, the family includes a 10-bit analogue-to-digital converter, an 8-bit digital-to-analogue converter, fast comparators and other timing and communication peripherals.
In stock
SKU PIC16F13145-EP

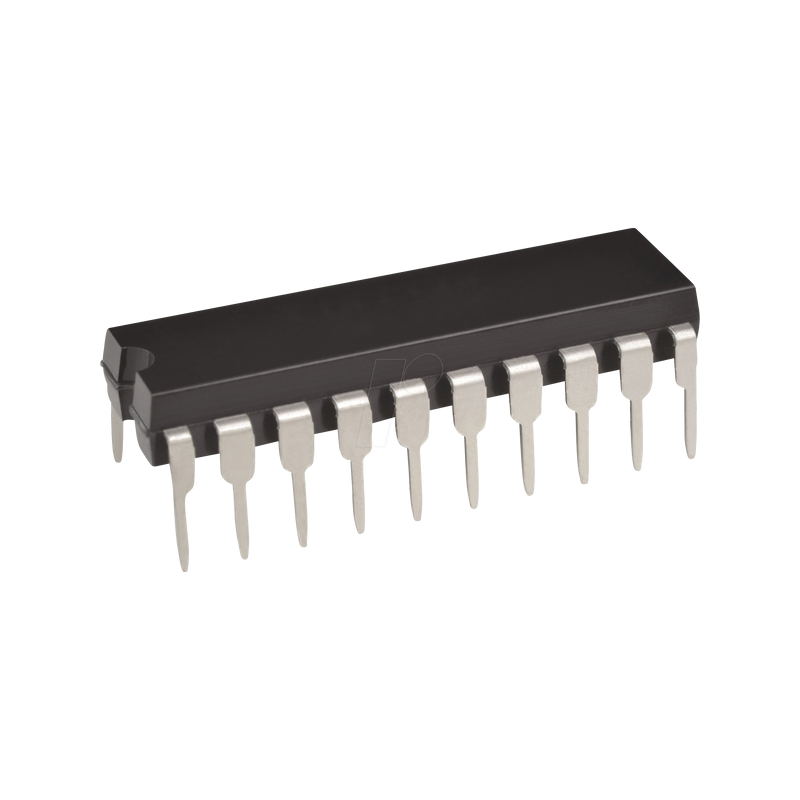

MCU, PICmicro, 14 KB, 32 MHz, PDIP-20
MPN PIC16F13145-E/P
Manufacturer MICROCHIP
€3.14
incl. 19% VAT · €2.64 excl. VAT
Package
PDIP-20
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F13145
Design
CLB, PWM, WDT
Mounting form
PDIP-20
Specials
CPU clock
32 MHz
Implementation
Memory
14
RAM
1 kByte
I/O-Pins
17
8-bit Timer
1
16-bit Timer
1
PWM
4
Analog comparator
2
Interfaces
I²C
1
ODC
5
DAC
1
I/O/USART
1
Electrical values
Supply voltage
+1.8 +5.5 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F13145-E/P
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003701984
HS-Code
85423190
