PIC16F1716 combines intelligent analogue integration with low cost and eXtreme Low Power (XLP) to suit a variety of general purpose applications. This microcontroller delivers on-chip op-amps, core independent peripherals (CLC, COG, NCO and zero cross detection) and peripheral pin select, providing increased design flexibility.
- 8 Kwords Flash program memory
- 1 Kbytes data SRAM
- 25 I/O pins
- Four 8-bit timers/one 16-bit timer
- 2 x high-speed comparators
- 2 x op-amps
- 17-ch x 10-bit ADC
- One 8-bit DAC and one 5-bit DAC
- Zero cross detection
- 2 x CCP/2 x PWM
- 1 x COG
- 1 x EUSART
- 1 x I2C/SPI
- 4 x CLC
- 1 x NCO
In stock
SKU PIC 16F1716-I/SO

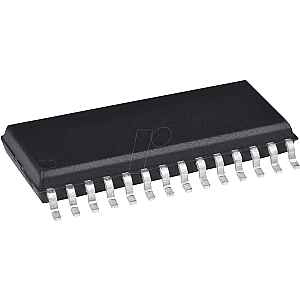

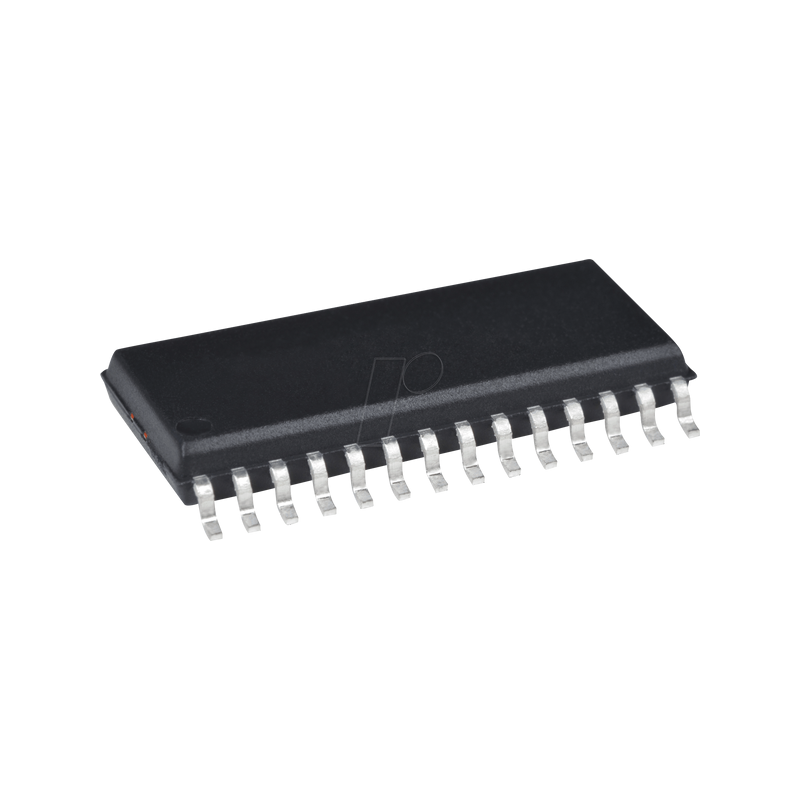

MCU, PICmicro, 14 KB, 32 MHz, SO-28
MPN PIC16F1716-I/SO
Manufacturer MICROCHIP
€1.99
incl. 19% VAT · €1.67 excl. VAT
Package
SOIC-28
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F1716
Design
WDT, ICSP, BOR, OpA
Mounting form
SOIC-28
Specials
CPU clock
32 MHz
Implementation
Memory
14
RAM
1 kByte
I/O-Pins
17
8-bit Timer
4
16-bit Timer
1
PWM
2
Internal oscillator
16 MHz
Analog comparator
2
Program Memory
14 KBytes
Interfaces
I²C
1
SPI
1
ODC
17
UART
1
I/O/USART
1
MSSP (SPI/I²C)
1
Electrical values
Supply voltage
+2.3 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F1716-I/SO
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001464065
HS-Code
85423190
