- Enhanced mid-range core with 49 instruction, 16 stack levels
- Flash program memory with self read/self write capability
- Internal 48 MHz oscillator
- Universal Serial BUS 2.0 module with clock recovery from USB host
- MI2C/SPI module
- Enhanced addressable USART module
- 25 mA source/sink current I/O
- 1X 8-bit timer (TMR0)
- 1X 16-bit timer (TMR 1)
- Extended watchdog timer (WDT)
- Improved power-on/off reset
- Low-power brown-out reset (LPBOR)
- Programmable brown-out-reset
- In-circuit serial programming (ICSP)
- In-circuit debug with one debug header
- PIC16LF145x (1.8 V - 3.6 V).
- PIC16F145x (1.8 V - 5.5 V)
In stock
SKU PIC 16F1459-I/ML

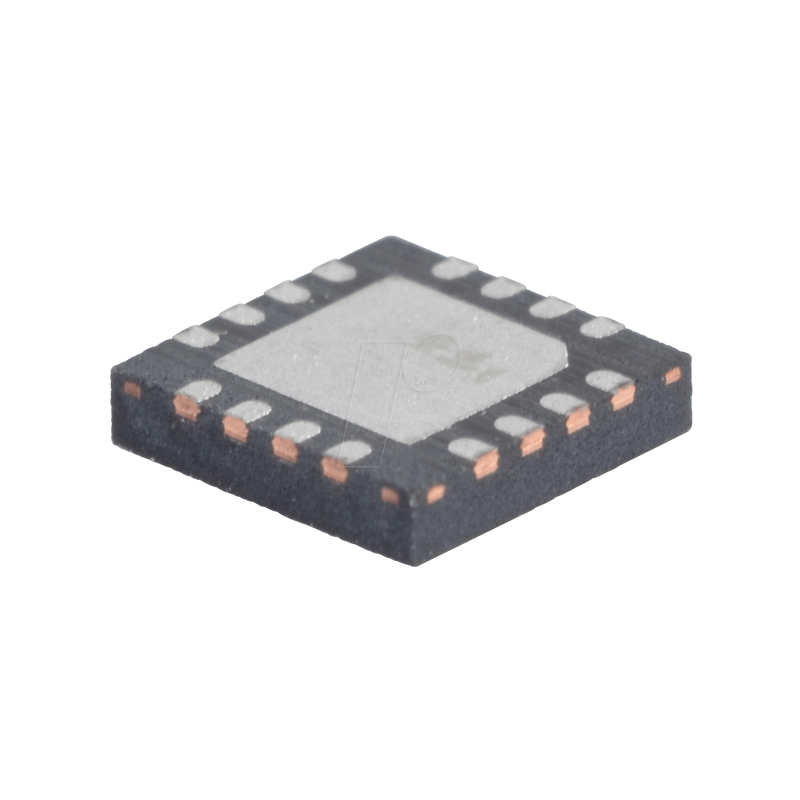

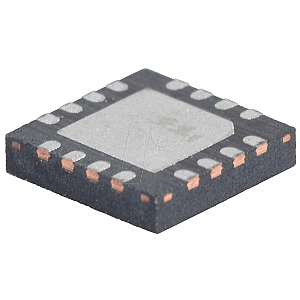

MCU, PICmicro, 14 KB, 48 MHz, QFN-20
MPN PIC16F1459-I/ML
Manufacturer MICROCHIP
€3.28
incl. 19% VAT · €2.76 excl. VAT
Package
QFN-20
Specifications
General
Type
8-Bit Mikrocontroller
Technology
PIC® Flash
Model
PIC16F1459
Design
WDT, ICSP, BOR
Mounting form
QFN-20
Specials
CPU clock
48 MHz
Implementation
Memory
14
RAM
1 kByte
I/O-Pins
11
8-bit Timer
2
16-bit Timer
1
PWM
2
Internal oscillator
0
Analog comparator
2
Program Memory
14 KBytes
Interfaces
I²C
1
SPI
1
ODC
9
UART
1
I/O/USART
1
MSSP (SPI/I²C)
1,
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F1459-I/ML
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001449567
HS-Code
85423190
