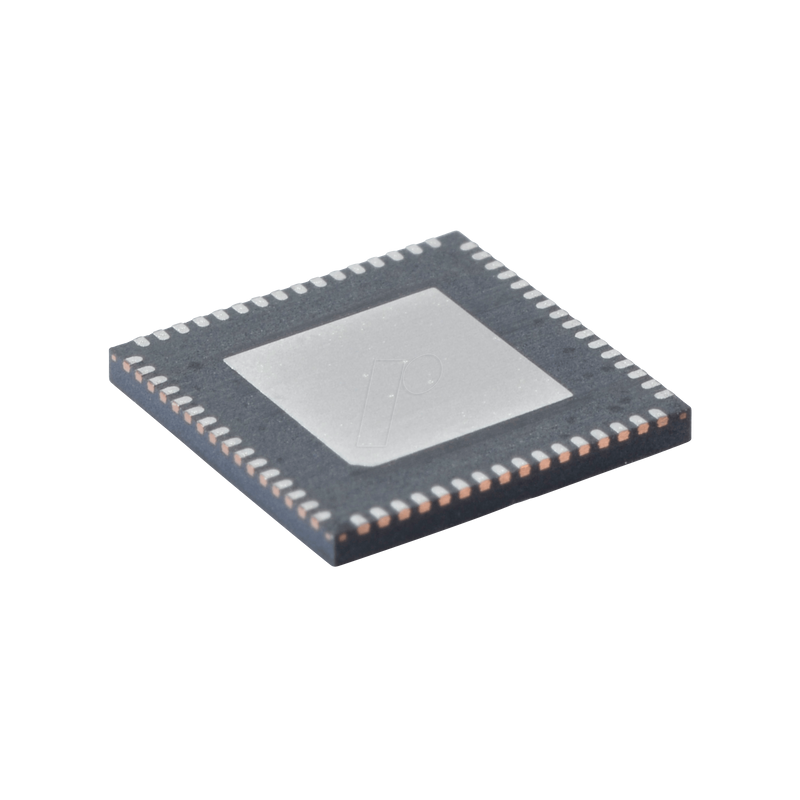

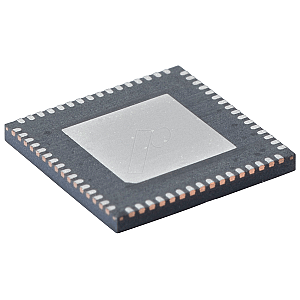

MCU, PICmicro, 16-bit, 128 KB, QFN-16

PIC24F 16-bit Flash Microcontroller with low noise, high throughput, integrated Intelligent Analog ideal for portable, industrial applications.
Segmented LCD, USB, and eXtreme Low Power consumption enable small footprint and long battery life.

Intelligent.Analog Features:
- 16-bit Sigma-Delta ADC (2 diff. ch)
- 12-bit 10MSPS Pipeline ADC (30 ch)
- 2x10-bit 1MSPS DAC
- 2 Operational Amplifiers
- 3 Comparators
- 3 Voltage References
- Charge Time Measurement Unit (CTMU)
eXtreme Low Power features (Typical):
- 18 nA Deep Sleep mode
- 350 nA RTCC in Vbat mode
- 380 nA Low Voltage Sleep mode (RAM retention)
- 400 nA Real Time Clock & Calendar operation in Sleep modes
- 240 nA Watch Dog Timer operation in Deep Sleep modes
Other Low Power Features include:
- 180 µA/MHz Run mode
- Power Modes: Run, Doze, Idle, Sleep, Low Voltage Sleep, Deep Sleep, Vbat
- Multiple, flexible clock modes for optimum performance and power management
- Deep Sleep Wake Sources: DSBOR, DSWDT, INT0 and RTCC
CPU:
- Up to 16 MIPS performance
- Single Cycle Instruction Execution
- 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
- C Compiler Optimized Instruction Set Architecture
- 6 Channel DMA
Select Peripherals:
- USB with Device/Host/OTG support
- Segmented LCD driver with charge-pump, 31 seg. x 8 comm.
- Peripheral Pin Select allows I/O remapping of many peripherals in real time
- Hardware RTCC, Real-Time Clock Calendar with alarm system
- Internal oscillators support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
- Fail-Safe Clock Monitor - allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- System Supervisors: Low Power BOR, WDT, INT0 and RTCC
- JTAG Boundary Scan
