PIC flash controller nanoWatt XLP DIL-14

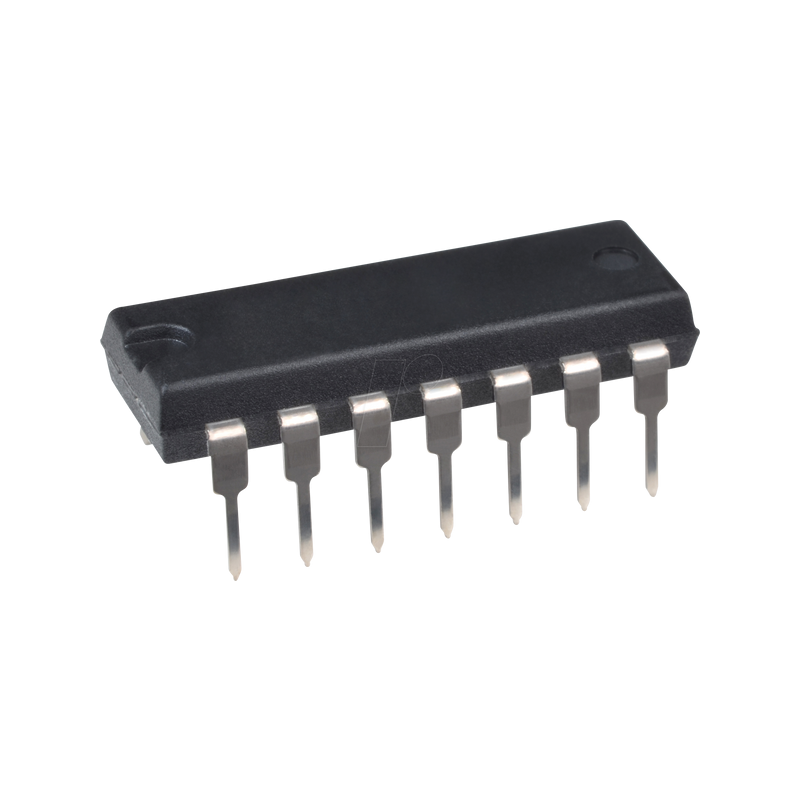

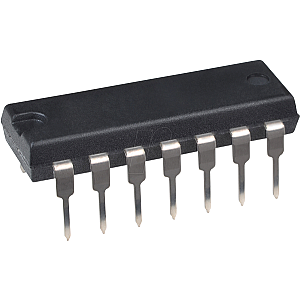

MCU, PICmicro, 16-bit, 4 KB, PDIP-14
€2.8724F04KA200-IP
Technical information
| General | |
|---|---|
| Core | PIC24F |
| family | PIC24 |
| Model | General purpose µC |
| Mounting form | PDIP-14 |
| Design | BOR, LVD, POR, WDT |
| Type | 16-Bit Mikrocontroller |
| Technology | PIC®(RISC) |
| Implementation | |
| Series | PIC24F04KA20x |
| Memory | 4 |
| RAM | 0.512 kByte |
| I/O-Pins | 12 |
| Timer | Yes |
| 16-bit Timer | 3 |
| Internal oscillator | 500 kHz, 8 MHz |
| PWM | 1 |
| Analog comparator | 2 |
| Specials | |
| CPU clock | 32 MHz |
| Electrical values | |
| Supply voltage | 1.8 ... 3.6 VDC |
| Supply Voltage Min. | 5 V |
| Supply Voltage Max. | 3.6 V |
| Other | |
| Temperature range | -40..+85 |
| Interfaces | |
| ODC | 7 |
| I²C | 1 |
| SPI | 1 |
| UART | 1 |
| SSP (SPI/I²C) | 1 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | PIC24F04KA200-I/P |
| Weight | 0.002 kg |
| RoHS | conform |
| EAN/GTIN | 9900000965853 |
| HS-Code | 85423190 |
