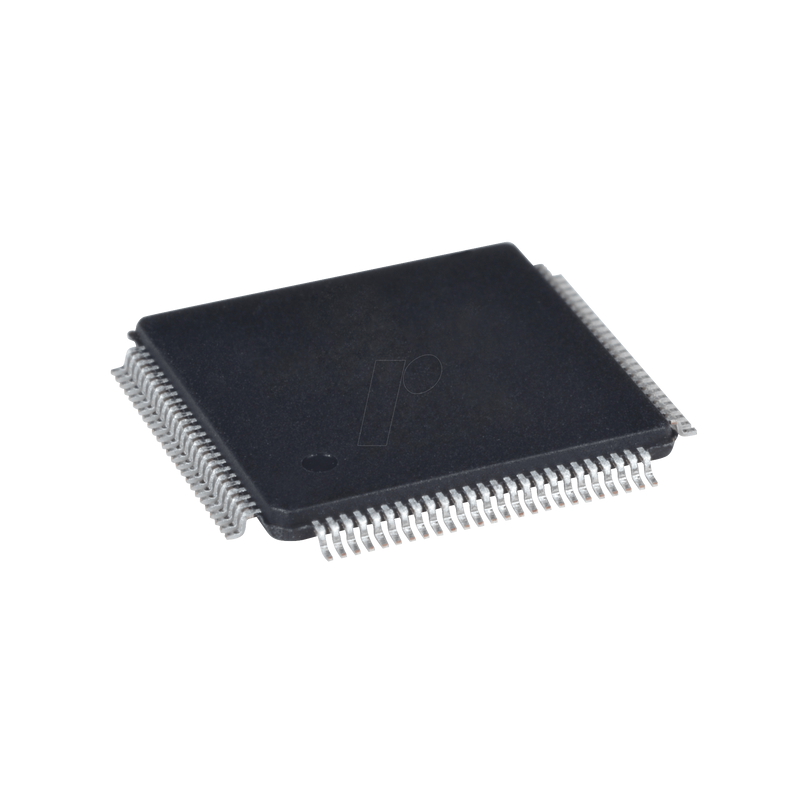

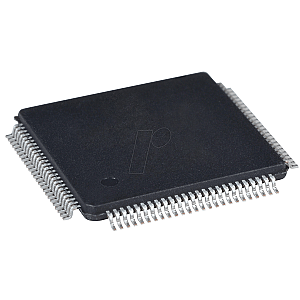

MCU, PICmicro, 16-bit, 64 KB, TQFP-100

PIC24F 16-bit Flash microcontroller with low noise, high throughput, integrated intelligent analogue ideal for portable & industrial applications.
Segmented LCD, USB and eXtreme Low Power consumption for a small footprint and long battery life.

Intelligent analogue features:
- 16-bit sigma-delta ADC (2 diff. ch)
- 12-bit 10MSPS ADC pipeline (30 ch)
- 2x10-bit 1MSPS DAC
- 2 operational amplifiers
- 3 comparators
- 3 voltage references
- Charge-Time Measurement Unit (CTMU)
eXtreme Low Power features (typical):
- 18-nA deep sleep mode
- 350-nA RTCC in Vbat mode
- 380-nA low-voltage sleep mode (RAM retention)
- 400-nA real time clock & calendar operation in sleep modes
- 240-nA watchdog timer operation in deep sleep modes
Other low-power features include:
- 180 µA/MHz run mode
- Power modes: run, doze, idle, sleep, low-voltage sleep, deep sleep, Vbat
- Multiple, flexible clock modes for optimum performance and power management
- Deep sleep wake sources: DSBOR, DSWDT, INT0 and RTCC
CPU:
- Up to 16 MIPS performance
- Single-cycle instruction execution
- 16 x 16 hardware multiply, & 32-bit x 16-bit hardware divider
- C compiler optimised instruction set architecture
- 6-channel DMA
Select peripherals:
- USB with device/host/OTG support
- Segmented LCD drive with charge-pump, 31 seg. x 8 comm.
- Peripheral Pin Select allows I/O remapping of many peripherals in real time
- Hardware RTCC, real-time clock calendar with alarm system
- Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4x PLL
- Fail-safe clock monitor - allows safe shutdown if clock fails
- Watchdog timer with separate RC oscillator
- System supervisors: low-power BOR, WDT, INT0 and RTCC
- JTAG boundary scan
