- Enhanced mid-range core with 49 instructions, 16 stack levels
- Flash program memory with self read/self write capability
- 256-byte EEPROM
- Internal 32 MHz oscillator
- 4 x PSMC (Programmable Switch Mode Controller)- dedicated 16-bit PWM digital and/or analogue feedback control of PWM frequency, dead-band control/auto-shutdown & restart
- 4x fast comparators with selectable voltage reference
- 3x operational amplifiers (rail-to-rail in and out)
- 14x 12-bit ADC with voltage reference
- 8 bit DAC
- MI2C/SPI/EUSART w/auto-baud
- 3x capture-compare PWM
- 4x 8-bit timer (TMR0/TMR2/TMR4/TMR6)
- 1X 16-bit timer (TMR 1)
- Extended watchdog timer (EWDT)
- Operating voltage range: - "F" version (2.3 ... 5.5 V) - low-power "LF" variant (1.8 ... 3.6 V)
- 25mA source/sink current I/O
- Enhanced power-on/off reset
- Brown-out reset (BOR)
- In-circuit serial programming (ICSP)
In stock
SKU PIC 16F1789-I/MV

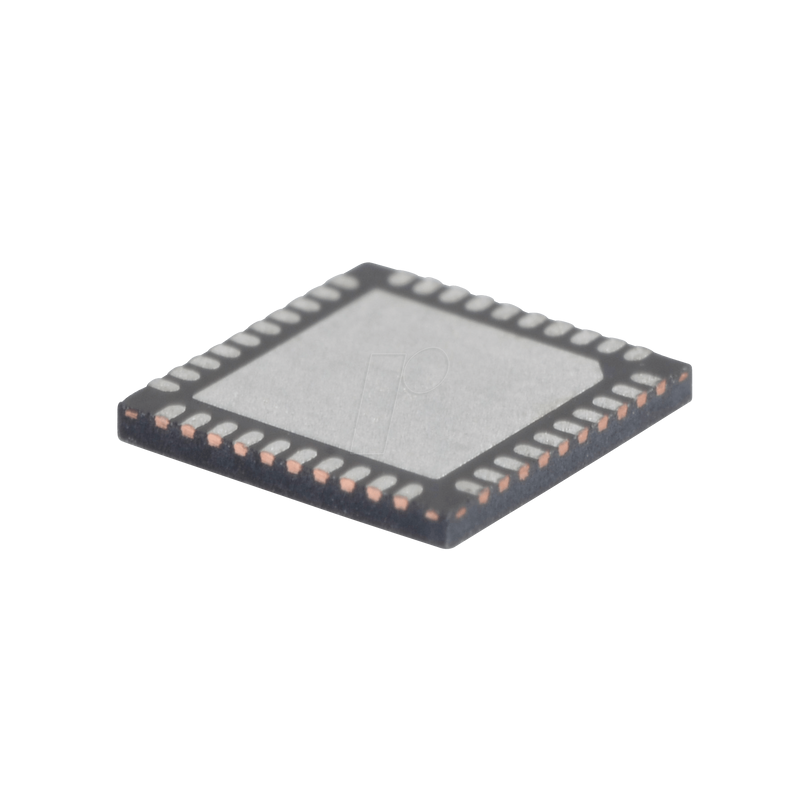

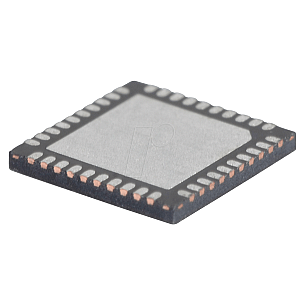

MCU, PICmicro, 28 KB, 32 MHz, QFN-40
MPN PIC16F1789-I/MV
Manufacturer MICROCHIP
€1.92
incl. 19% VAT · €1.61 excl. VAT
Package
QFN-44
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F1789
Design
WDT, ICSP, BOR, OpA
Mounting form
QFN-44
Specials
CPU clock
32 MHz
Implementation
Memory
14
RAM
2 kByte
EEPROM
256 Byte
I/O-Pins
36
8-bit Timer
4
16-bit Timer
1
Internal oscillator
32 MHz, 32 kHz
Analog comparator
4
Program Memory
28 KBytes
Interfaces
I²C
1
SPI
1
ODC
11
UART
1
I/O/USART
1
MSSP (SPI/I²C)
1
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F1789-I/MV
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001449727
HS-Code
85423190
