Features
- Flash program memory with self-read/write capability
- Mid-range core, internal 8-MHz oscillator
- 1x op. amp.
- 2x high-speed analogue comparators (50 ns)
- 1x Capture-Compare PWM (CCP)
- 8x 10-bit analogue-to-digital converters (ADC) with voltage reference
- 1x dual range 9-bit digital-to-analogue converter (DAC)
- Complementary output generator (COG): complementary waveforms from selectable sources
- Watchdog timer (WDT)
- Power on/off reset, brown-out reset (BOR)
- In circuit serial programming (ICSP)
- High current source/sink: 2 pins with 50 mA I/O, 9 pins with 25 mA I/O
- Large operating voltage of PIC16F753 variant (2.0 - 5.5 V)
- High voltage PIC16HV753 variant (2.0 V - user-defined) with internal shunt regulator
In stock
SKU PIC 16F753-I/ST

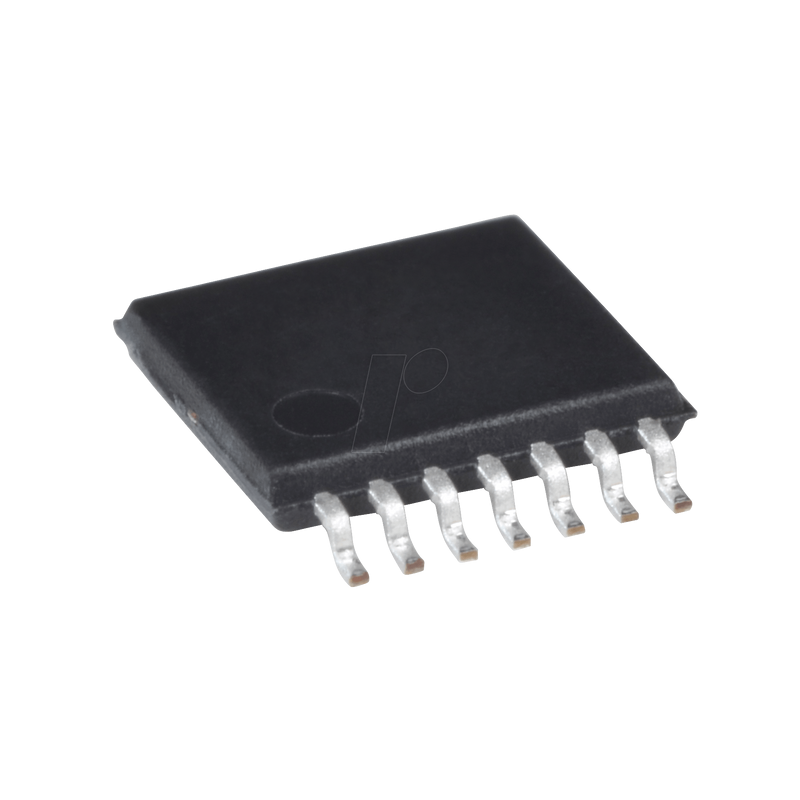

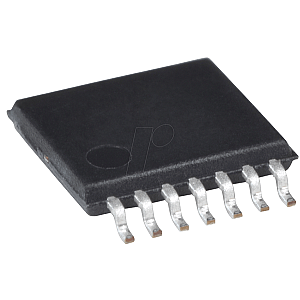

MCU, PICmicro, 3.5 KB, 20 MHz, TSSOP-14
MPN PIC16F753-I/ST
Manufacturer MICROCHIP
€1.64
incl. 19% VAT · €1.38 excl. VAT
Package
TSSOP-14
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F753
Design
1-WDT, ICSP, BOR
Mounting form
TSSOP-14
Specials
CPU clock
20 MHz
Implementation
Memory
14
RAM
0.128 kByte
I/O-Pins
12
8-bit Timer
3
Internal oscillator
8 MHz
Analog comparator
2
Program Memory
3.5 KBytes
Interfaces
ODC
8
Electrical values
Supply voltage
+2.0 ... +5.5 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F753-I/ST
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001464140
HS-Code
85423190
