Microchip PIC controller - high-performance RISC CPU
Microchip supports the entire performance range from 8-bit, 16-bit and 32-bit microcontrollers with a powerful architecture, flexible storage technologies and extensive easy-to-use development tools, as well as complete technical documentation. The advantages of the Microchip microcontroller solutions are quite clear:
- All PIC® MCUs and dsPIC® DSCs provide upward and downward scaling for your design projects
- The upwardly compatible architecture secures your investment in code development
- Easily switch between 8, 16 and 32-bit families
- Pin compatibility between the housing variants
- Low-risk product development
rapid time-to-market cycles
low overall system costs
- Many controllers are already supplied with a series of interesting features
- Analogue and digital peripherals can be integrated with a minimal number of components required
In stock
SKU PIC 16LF1503-IST

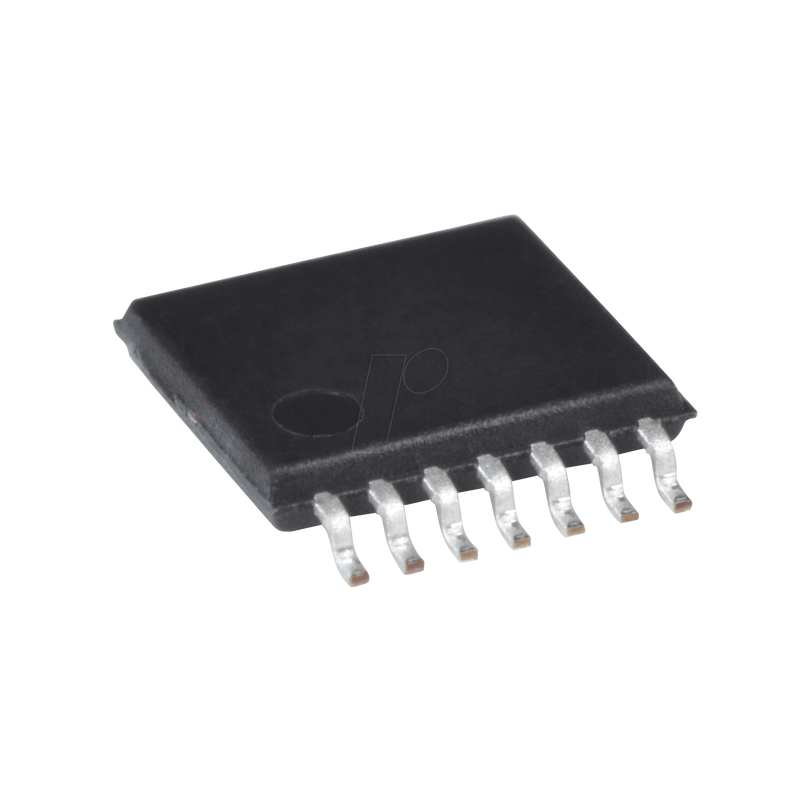

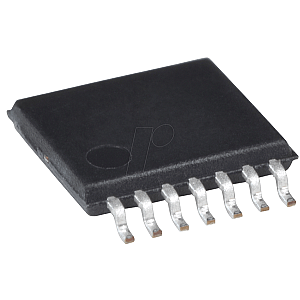

MCU, PICmicro, 3.5 KB, 20 MHz, TSSOP-14
MPN PIC16LF1503-I/ST
Manufacturer MICROCHIP
€1.13
incl. 19% VAT · €0.95 excl. VAT
Package
TSSOP-14
Specifications
General
Type
PIC Controller
Technology
Flash
Model
PIC16LF1503
Design
1-WDT, ICSP
Mounting form
TSSOP-14
Specials
CPU clock
20 MHz
Implementation
Memory
3.5
RAM
0.128 kByte
I/O-Pins
12
8-bit Timer
2
16-bit Timer
1
PWM
4
Internal oscillator
16 MHz, 31 kHz
Analog comparator
2
Interfaces
ODC
8
MSSP (SPI/I²C)
1
Electrical values
Supply voltage
+1.8 ... +3.6 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16LF1503-I/ST
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001214578
HS-Code
85423190
