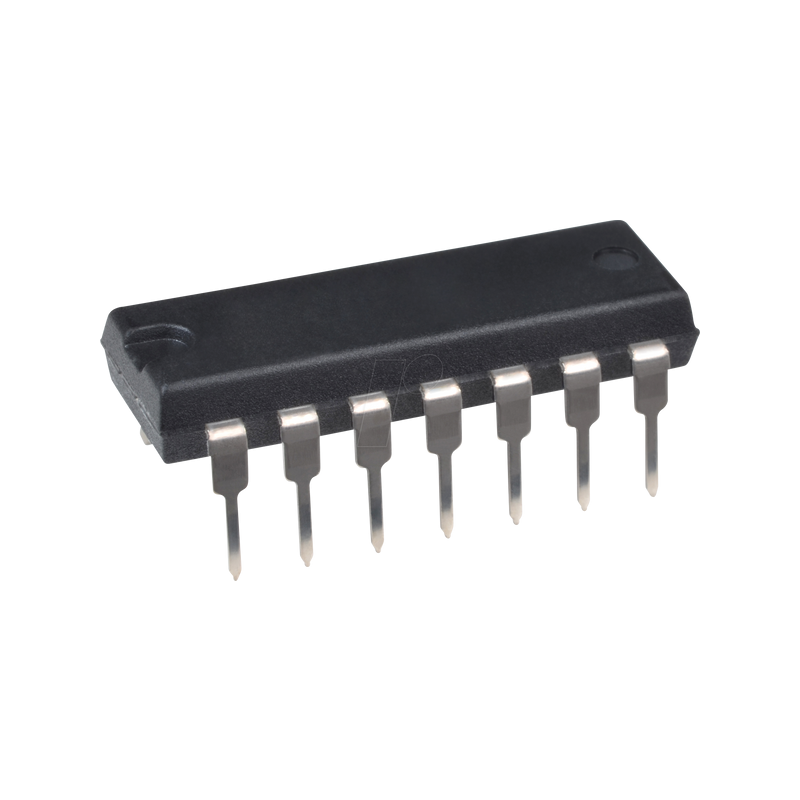

MCU, PICmicro, 3.5 KB, 32 MHz, DIL-14

High-Performance RISC CPU:
- operating Speed:
- DC - 32 MHz oscillator/clock input
- DC - 125 ns instruction cycle
- interrupt Capability with Automatic Context Saving
- 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset
- direct, Indirect and Relative Addressing modes:
- Two full 16-bit File Select Registers (FSRs)
- FSRs can read program and data memory

Flexible Oscillator Structure:
- precision 32 MHz internal Oscillator Block:
- Factory calibrated to ± 1%, typical
- Software selectable frequencies range of 31 kHz to 32 MHz
- 31 kHz Low-Power Internal Oscillator
- four Crystal modes up to 32 MHz
- three External Clock modes up to 32 MHz
- 4X Phase Lock Loop (PLL)
- fail-Safe Clock Monitor:
- Allows for safe shutdown if peripheral clock stops
- two-Speed Oscillator Start-up
- reference Clock module:
- Programmable clock output frequency and duty-cycle

Special Microcontroller Features:
- voller 5,5V-Betrieb - PIC12F1822/16F1823
- 1.8V-3.6V Betrieb - PIC12LF1822/16LF1823
- selbst-reprogrammierbar unter Softwarekontrolle
- Power-on Reset (POR), Power-up Timer (PWRT) und Oszillator Start-up Timer (OST)
- programmierbarer Brown-out-Reset (BOR)
- erweiterter Watchdog-Timer (WDT)
- In-Circuit Serial Programming™ (ICSP™) über zwei Pins
- in-Circuit Debug (ICD) über zwei Pins
- erweiterte Low-Voltage-Programmierung (LVP)
- Betriebsspannungsbereich:
- 1.8V-5.5V (PIC12F1822/16F1823)
- 1,8V-3,6V (PIC12LF1822/16LF1823)
- programmierbarer Code-Schutz
- selbstprogrammierbar unter Softwarekontrolle

Low-Power Features:
- Standby Current (PIC12LF1822/16LF1823):
- 20 nA @ 1.8V, typical
- Operating Current (PIC12LF1822/16LF1823):
- 34 nA @ 1 MHz, 1.8V, typical
- Low-Power Watchdog Timer Current (PIC12LF1822/16LF1823):
- 300 nA @ 1.8V, typical

Analog Features:
- Analog-to-Digital Converter (ADC) module:
- 10-bit resolution, up to 8 channels
- Conversion available during Sleep
- Analog Comparator module:
- Up to two rail-to-rail analog comparators
- Power mode control
- Software controllable hysteresis
- Voltage Reference module:
- Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels
- 5-bit rail-to-rail resistive DAC with positive and negative reference selection

Peripheral Highlights:
- up to 11 I/O Pins and 1 Input Only Pin:
- High current sink/source 25 mA/25 mA
- Programmable weak pull-ups
- Programmable interrupt-on-change pins
- timer0: 8-Bit Timer/Counter with 8-Bit Prescaler
- enhanced Timer1:
- 16-bit timer/counter with prescaler
- External Gate Input mode
- Dedicated, low-power 32 kHz oscillator driver
- timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
- wnhanced CCP (ECCP) modules:
- Software selectable time bases
- Auto-shutdown and auto-restart
- PWM steering
- master Synchronous Serial Port (MSSP) with SPI and I2CTM with:
- 7-bit address masking
- SMBus/PMBusTM compatibility
- enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
- RS-232, RS-485 and LIN compatible
- Auto-Baud Detect
- capacitive Sensing (CPS) module (mTouch™):
- Up to 8 input channels
