The IM23ABSU is a compact low-power microphone with capacitive sensing and IC interface. The MEMS microphone is manufactured in a special silicon microprocessing process and is suitable for reflow soldering. The special feature is the wide frequency range of up to 80 kHz (ultrasound).
Special features

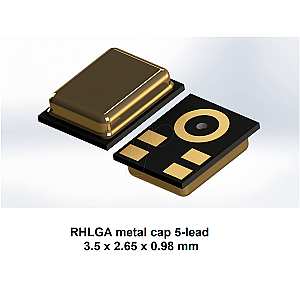

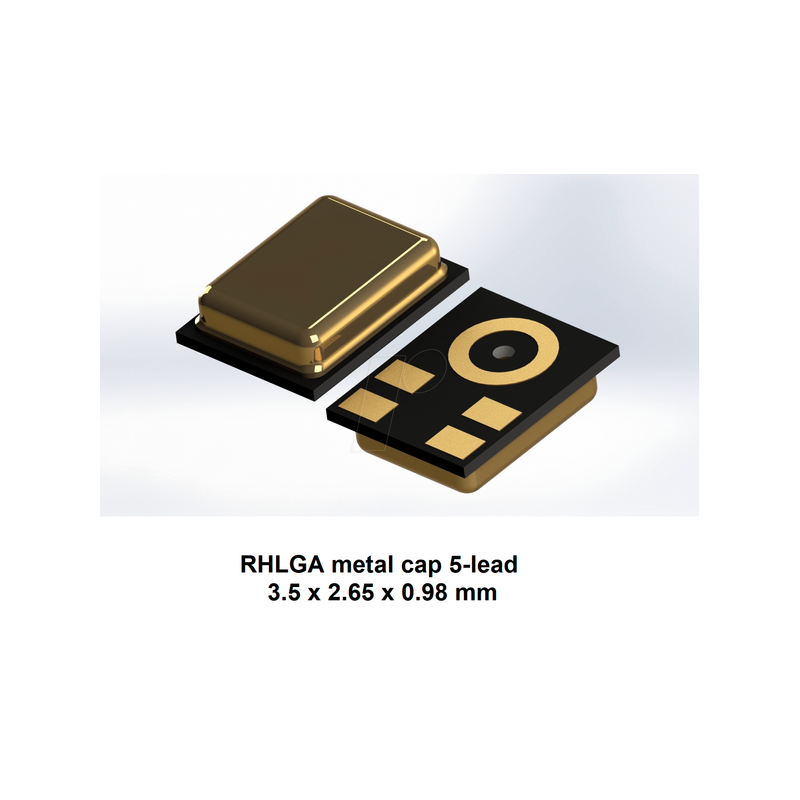

MEMS microphone, 64dB, 80 kHz, 1.52-3.6 V, RHLGA-5
€4.14IMP23ABSU
Technical information
| General | |
|---|---|
| Model | IMP23ABSU |
| Type | Audiosteuerung |
| Design | MEMS-Mikrofon |
| Technology | Analogue |
| Mounting form | RHLGA-5 |
| Other | |
| Temperature range | -40..85 |
| Electrical values | |
| Supply voltage | 1.52 - 3.6 VDC |
| SNR | 64 dB |
| Frequency range | bis 80000 Hz |
| Manufacturer specifications | |
| Manufacturer | STMICROELECTRONICS |
| Manufacturer ID | IMP23ABSU |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900003125100 |
| HS-Code | 85423111 |
