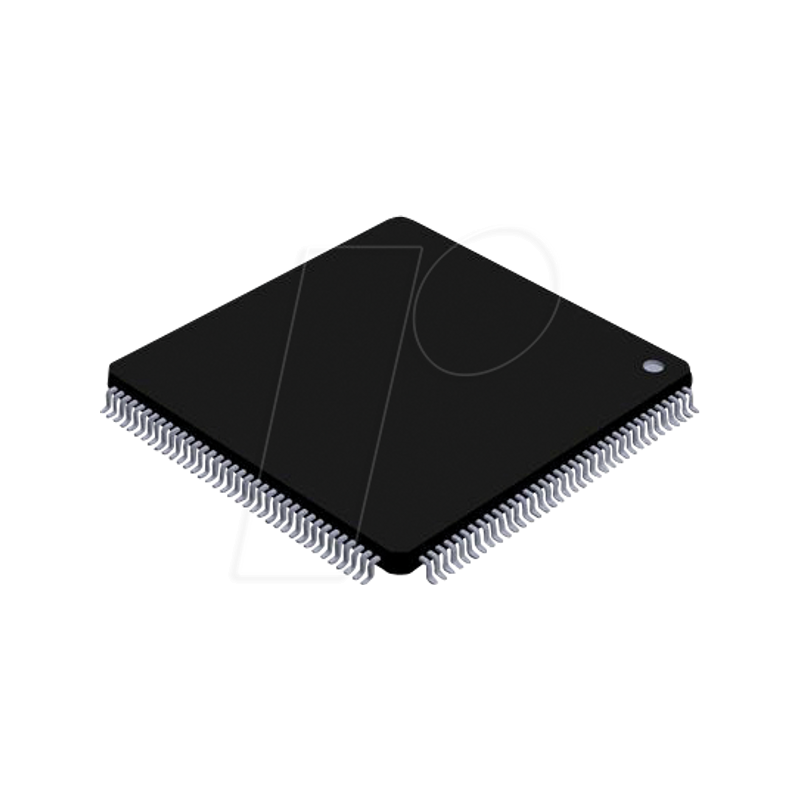

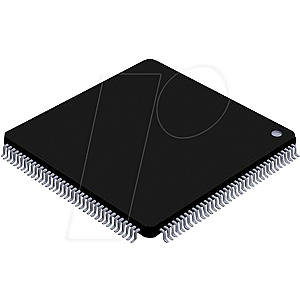

Microcontroller, 512KB, 216MHz, 320KB, ARM, Cortex M7, LQFP-144

High-performance and DSP with FPU, Arm Cortex-M7 MCU with 512 Kbytes of Flash memory, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, TFT

The STM32F745xx and STM32F746xx devices are based on the powerful ARM® Cortex®-M7 32-bit RISC core, which operates at a frequency of up to 216 MHz. The Cortex®-M7 core features a single floating point unit (SFPU) precision that supports all ARM® single-precision data processing instructions and data types. It also implements a full set of DSP instructions and a Memory Protection Unit (MPU) that increases application security.

The STM32F745xx and STM32F746xx devices feature embedded high-speed memories with up to 1 Mbyte of flash memory, 320 Kbytes of SRAM (including 64 Kbytes of data TCM RAM for critical real-time data), 16 Kbytes of instruction TCM RAM (for critical real-time routines), 4 Kbytes of backup SRAM, available in the lowest power consumption modes, and an extensive range of advanced I/O and peripherals connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix and a multi-layer AXI interconnect supporting access to internal and external memories.
